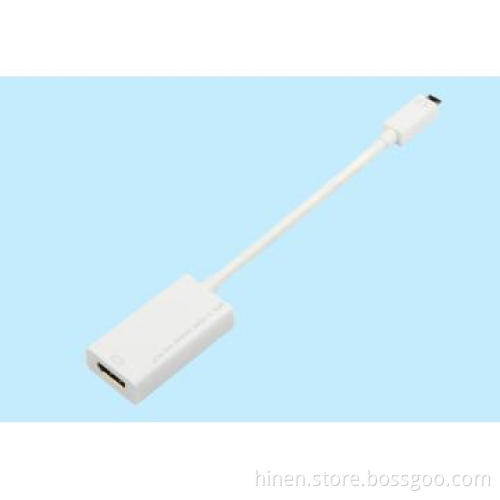

MHL to HDMI Adapter with RCP

MHL to HDMI Adapter with RCP
P/N:ML-SHR

Introduction
 The MHL to HDMI Adapter with RCP has very powerful functions. It not only has built-in MHL bridge that easily let you connect your MHL mobile device to HDMI display, but also has built-in RCP(Remote Control Protocol) function that let you can use the Remote Control of HDTV to operate the MHL mobile device through HDTV’s CEC function.


Features

 This product has many features that enable it to perform in a superior manner. Among those features you will find:

• Uses a single, thin adapter to connect the mobile device to the HDTV.
• Connects Micro USB Female port to Computer or Power Adapter for charging and getting power using a Micro USB to USB M/M cable.
• On-chip MHL Receiver and HDMI Transmitter core which are complaint with MHL 1.1 and HDMI 1.4b specification
• On-chip MHL/HDMI Bridge with Equalizer
• Support up to 75 MHZ pixel clock rate(8-bit 720p 60Hz or 1080p 30Hz)
• Support up to 148.5 MHZ pixel clock rate in Packed pixel Mode(8-bit 1080p

     60Hz)

• Support on-chip EDID RAM
• Support the RAP/RCP Function
• Support the CEC Function
• Support on-chip programmable passive/active DDC switches
• Low stand-by current (<1mA) at power down mode

Specifications


Signal Inputs/Output
Input Connector	Micro USB Male x1
Output Connector	HDMI Female x1
Other port	Micro USB Female x1 for charging
Mechanical
Size(L-W-H)	45X43X14.5MM
Weight (Net)	18g
Warranty
Limited Warranty	1 Year Parts and Labor
Environmental
Operating Temperature	0 ℃to +70℃
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10℃to +80℃
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	No
Regulatory Approvals
Converter Unit	FCC,CE,UL
Power Supply	No
Accessories Adapter
User Manual	English version

Note: Specifications are subject to change without notice.
