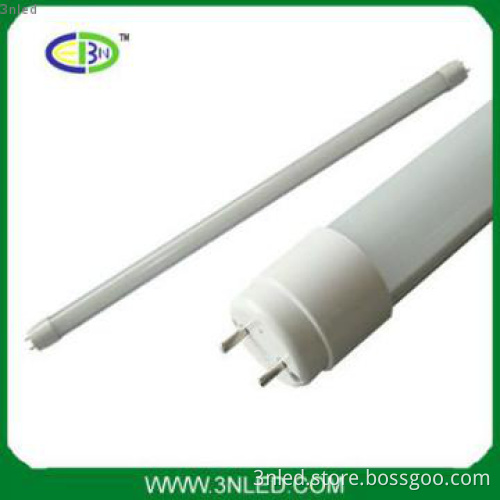

DLC/UL/cUL led fluorescent tube lights 100-277v ac input

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Certification	UL/cUL/DLC/TUV/CE/RoHS
Product name	fluorescent tube
Color optional	WW/NW/PW/CW
LED type	epistar
Warranty	5 years
Life	>50000hrs
Power	36w
Length	240cm
Light Source Chip	Epistar
Tube Diameter	T8
Lamp Base	G13
Color Tones	Natural White
Voltage	90-260V
Illuminant	SMD

Detail Description

led fluorescent tube lights leading manufacture

1. tube led lighting t8 high quality
2.3/5 years warranty
3.UL,TUV,ROHS,LM79,lm80
4.>105lm/w,CRI>80Ra
5.Punctual delivery time

Why choosing us-3NLed Lighting :

1.completed certified for you, DLC, UL/cUL(E349233, E349234),CE RoHS TUV can be availabe

2.different length(2ft,3ft,4ft,5ft,6ft,8ft),various end cap(G13,R17D,Fa8) blue,white color end cap

3.high brightness 2835 as the light source, 80Ra, >100lm/w, do beter in cost-effective compared with the others.also original samsung, LG smd can be ok for us.

4.at least 3 years warranty you get.

5.flexible price-made for your different market requirment.

Detail spec. for 3Nled lighting ul/cul/dlc t8 tube super brightness

Model No.	SNT8B-06S	SNTT8B-09S	SNT8B-15S
Power Consumption	10W	18W	22w
LED Type	50pcs 2835smd leds	100pcs 2835smd leds	120pcs 3014smd leds
Light Color	warm white, pure white, cool white	warm white, pure white, cool white	warm white, pure white, cool white
Color Temperature	2700~3500K, 4000-5000K, 6000-7000K	2700~3500K, 4000-5000K, 6000-7000K	2700~3500K, 4000-5000K, 6000-7000K
Luminous Flux	1000±10%LM	1800±10%lm	2200±10%lm
Length	2ft/600mm	4ft/1200mm	5ft//1500mm
Cover	milky/clear/stripped	milky/clear /stripped	milky/clear/stripped
Housing Material	Aluminum housing+PC cover	Aluminum housing+PC cover	Aluminum housing+PC cover
Color Rendering Index	>80Ra	>80Ra	>80Ra
Power Factor	>0.90	>0.90	>0.90
Driver Efficiency	>85%	>85%	>85%
Input Voltage	AC100-277V	AC100-277V	AC100-277V
Frequency	50/60Hz	50/60Hz	50/60Hz
IP Rating	IP44	IP44	IP44
Operating Temperature	-20°C ~ +40°C	-20°C ~ +40°C	-20°C ~ +40°C
Body Temperature	Less than 55°C (at room temperature 25°C)	Less than 55°C (at room temperature 25°C)	Less than 55°C (at room temperature 25°C)
Storage Temperature	-40°C ~ +80°C	-40°C ~ +80°C	-40°C ~ +80°C
Humidity	0~90%	0~90%	0~90%
Single Package	Poly bag+strong round box	Poly bag+strong round box	Poly bag+strong round box
Carton Size	1250x210x220mm	1250x210x220mm	1250x210x220mm
Pcs/CTN	25pcs	25pcs

product outline:

various covers for tube t8 Led lighting for you, clear, frosted,striped cover for your choosing.

More than 72hrs aging test before package:

Product outline for t8 tube UL/cUL/DLC LM79 test report, LM80

Corners of our factory:

Package information for 3N tube led lamp t8, UL/CUL/DLC/LM79/LM80 IES Files TUV CE ROHS top quality.

Model No.	SNT8B-06S	SNT8B-09S	SNT8B-12S	SNT8B-15S	SNT8B-18S	SNT8B-24S
pin to pin (mm)	603	911	1213	1513	1779	2382
face to face (mm)	588	896	1198	1498	1764	2367
diameter (mm)	26	26	26	26	26	26
unit N.W (kg)	0.23	0.32	0.40	0.48	0.54	0.80
carton G.W (kg)	9	12	16	19	23	32
qty. / ctn (pcs)	25	25	25	25	25	25
carton size (mm)	195X200X650	195X200X950	195X200X1250	195X200X1550	195X200X1850	195X200X2450

TUV-CE Rohs certifications for 3N LED tube lighting

UL No. .e349233 for ul standard for compenent for tubes.

UL NO.E349234 standard for the whole re-trofit.

Welcome to your trial order to test the quality firstly!

Additional Information

Payment Terms	L/C, T/T, Western Union
Minimum Order	10
Lead Time / Delivery Time	5 Day(s)
Sample Available	NO
Delivery Details	100% T/T for sample order; 30% deposite,705 balance before shipment for bulk order
FOB Port	Dalian,Foshan,Guangzhou,Shenzhen
Loading Info	by express,3-5working daysby air,5-6working daysby sea,20-25 working days
Packing Info	one piece in a paperbox,25PCS/CTN
Target Market(s)	Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
