7.4v 6600mAh Lithium-ion Battery

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

battery	18650-2S3P
Capacity	2000-2500mAh
Nominal Voltage	6-9V

Detail Description

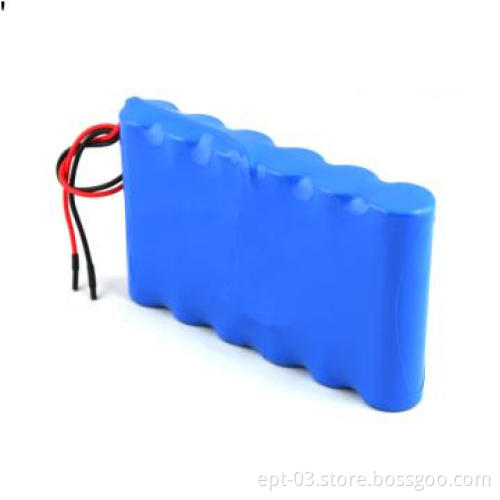

7.4v 6600mAh Lithium-ion Battery

Specification:

Combination way： ICR18650-2S3P
Rated Voltage： 7.4V
Rated capacity： 6600mAh
Constant discharge current： 0.2C(Standard)/1C(Max)
Working temperature： charge: 0~45℃/discharge: -20~60℃
Product size： MAX 19*68*110mm
Internal Impedance： ≤250mΩ
Lead model： Molex 2139-2P forward UL1007/20#, length: 205mm
Over-Charge detect voltage： 4.3±0.025V
Over-discharge detect voltage： 2.8±0.05V
Current threshold： 4~8A

Introduction:

7.4V lithium-ion battery is one of our 18650 lithium battery products. Rated capacity is 6600mAh and max dimension: 19*68*110mm. All of our 7.4V li-ion batteries are equipped with special design protection circuit to ensure compliance with working parameters of electric devices.
Output way of 7.4V li-ion battery:
Use Molex 2139 positive plug wire with 3.96 space and match with female plug of main board. Consider output place, middle output and side output.
Applications of 7.4V lithium-ion battery: card reader, test instrument, survey instrument, infusion pump, etc. application fields cover industrial instrument, medical device, portable electronic products, etc.

Additional Information

Payment Terms	T/T
Minimum Order	1000pack
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	15 days ~20 days on confirmation the PO
FOB Port	Shenzhen
Loading Info	EXW or FOB shenzhen
Packing Info	Carton packaging
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
