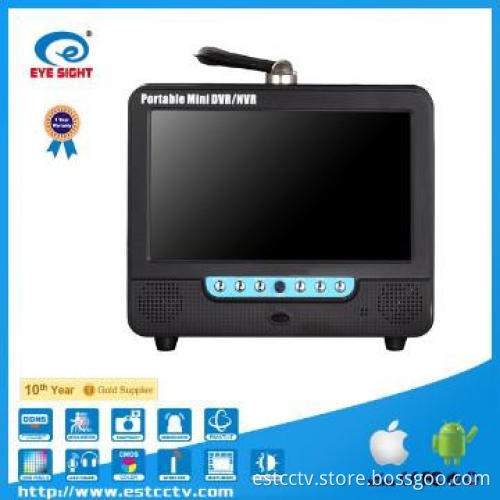

H.264/720P/7\" LCD/Linux /D1 4CH NVR cctv NVR-604P

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

Video record	Hard disk,remote record,USB/DVD-RW
Operation system	LINUX
Video quality	720P
Recording mode	Manually,alarm,motion detection,timing
Size	7 inch

NVR Series

ES- NVR604D

Size:28*26*19.5cm

Weight:2.9kgs

Quantity:8pcs/ctn

Gross weight:24.5kgs/ctn

Meas:58 * 42 * 53.5cm

Feature:

Real-time 4ch D1 or 1ch 720P digital video input

Built-in web server

H.264 compression

Built-in 7 inch LCD screen

Built-in amplifier and speaker

Support bidirectional audio function

4ch real-time video view,recording,playback and backup

Mobile phone view function(Windows Mobile,Symbian,Iphone,Android,Black berry)

Network function

Multi operation method(Button,mouse,remote controller)

Multi backup method(U disk,Hard disk,network)

Easy hard disk installation

Specification

Ststem	Specification	Parameter
Operation system	LILUX
Interface	Imaging
Resource	Real time recording,playback,internet browsing
Image	Size	7 inch
Display mode	Single / quad
TV system	PAL/NTSC
Video quality	720P/D1（704*576）
Playback video quality	720P/D1/HD1/CIF
Recording mode	Manually,alarm,motion detection,timing
Local playback	4ch
Video query	Search by time,date,event,channel
Video record	Hard disk,remote record,USB
Backup mode	Internet,USB storage
Video	IP camera input	4ch
Video Compression	H.264
Video output	1ch BNC、1ch VGA
Audio compression	G.711
Talkback	Built-in sound pick up
Audio output	1ch RCA+built-in speaker
Alarm	Alarm input	4ch
Alarm output	1ch
Interface	PTZ	RS-485
Network interface	Self-adapt RJ45 10M/100M
USB interface	USB2.0*2
HDD interface	SATA*1 (2TB)
Power adaptor	DC12V/4A
Consumption	≤20W
Working temperature	-10℃～+55℃
Working Humidity	10%～90%
Atmospheric pressure	86Kpa～106Kpa

Payment Terms	T/T, Others
Minimum Order	1PC
Lead Time / Delivery Time	1 Day(s)
Sample Available	NO
Delivery Details	3-5 business days after payment confirmed
FOB Port	Shenzhen
Loading Info	International Express UPS EMSSeaAir
Packing Info	Color box
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
