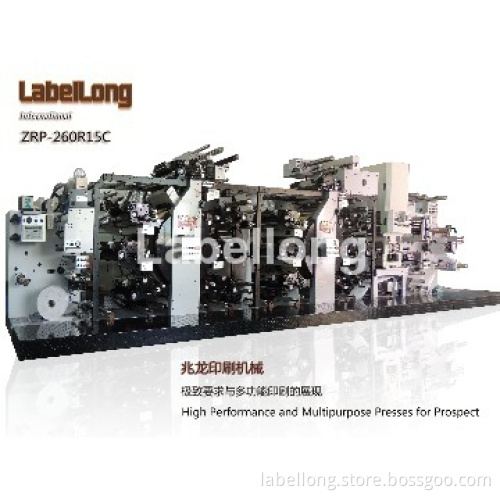

15-Color High Performance Printing Machine

1>  Satellite Structure for better over print in chromaticity;

2>  Full Servo Computer Control with 13 Single servos for Independent position operation control;

3>  Extra platform for Cold Stamping.Flexo and Roll Silk –Screen device added.

4>  15 Colors Standard Sets with Varnishing, Cutting, Corona treater and Web Guild systems for Multi-operation process switch.

5>  One time finish for Pre/post cold stamping and Transferred Film.

6>  Alarm System for operation safety management;

7>  Material tension controller during operation;

8>  Ink Change/Clean process support by on-line by Power-off, Lower Maintenance Cost;

9>  Easy Printing Length Management by Gear and Cylinder adjustment;

10> Synchronous Roller Die cuter with Printing Devices Operation.

SPEC

Printing station - 13 Sets

Flexo Varnishing Station- 1 Set

Gearing - 1/8” (CP)

Max. Paper width- 260 (mm)

Max. Printing width- 250 (mm)

Unwind roll dia. Max. - 800 (mm)

Rewind roll dia. Max. - 800 (mm)

Printing Length (Max.)- 460.375 (mm)

Printing (Min) - 190.5 (mm)

Printing Speed (Max.)- 100 (M/min)

Machine Net weight - 11000 (Kgs)

Machine Gross weight- 12000 (Kgs)

Main Motor - 15 (KW) 380V

Stirring Motor (4pcs) - 2600 (W)

UV Dryer 5 Sets (5KW/PC) - 65 (KW)

Machine Size (L*W*H) – 10LX1.6WX2.4H (M)

Standard Accessories:

Printing station- 13 Sets

UV Dryer - 14 Sets

Printing Cylinder- 5Sets

Paper Slitting System- 1 Set

Web Guild Controller - 1 Set

Splicing Platform- 1Set

Flexo Varnishing System - 1 Set

Corona treater- 1 Set

Side printing device- 1 Set

Roller die-cut- 1 Set

Electrostatic Eliminator - 1 Set

OPP Laminating System- 1 Set

Market:

Automotive,Cosmetics General Consumer Health & Beauty Wine &Spirits
