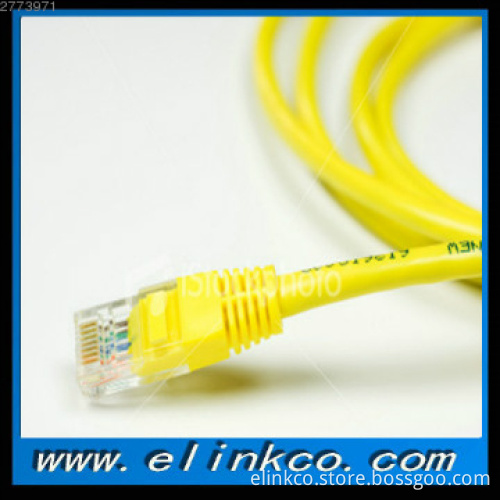

Cat5e Network Cable High quality UTP RJ45

Cheap UTP Cat5e RJ45 Lan Cable

Specifications:

1. With RJ45 8P8C connector

2. Rated Temperature:75Degree

3. Solid/Strands Cores are available

4. Standard:UL444,TIA/EIA568B.2,YD/T1019-2001

5. 24AWG*4P, 26AWG*4P, OD:5.5mm

6. Insulation :HDPE,

7. Jacket: PVC

8. Rip cord: Per your request

Features and benefits

1. 6-50 micron RJ-45 staggered gold plated connectors .

2. Fitted with strain relief boots

3. With or without reports made to the order

4. 100% tested wiring sequence and continuity

5. Excellent attenuation and crosstalk characteristics

6. With or without reports made to the order

7. Connector with staggered pin configuration to limit cross talk .

8. Exceed Category 5E requirement .

9. They are available in a variety of the lengths

Products Description:

Constructed of High-Performance Cat 5E cable suitable for 1000MHZ High-speed data applications, gigabit ethernet, fast ethernet, 155Mbps TP-PMD/CDDI . Boots offer cable-end color ID, strain relief and RJ45 plug tab protection from snagging on cables or connectors when routing in ceiling and under floors, suitable for indoor installations.

Electrical Characteristic:

1.1.0-100.0MHz Impedance (ohms):100 +/- 15

2.1.0-350.0MHz Delay Skew (ns/100m):<=45

3.Pair-to-Ground Capacitance Unbalance (pF/100m):<=330

4.Max. Conductor DC Resistance 20 degree(ohms/km):93.8

5.Resistance  Unbalance (%):<=5

Application:

1. 100 Base-T4

2. 100 Bsdr-TX

3. 100 VG-AnyLAN

4. 155 Mbps ATM

5. 622 Mbps ATM

CONSTRUCTION & CHARACTERISTICS
