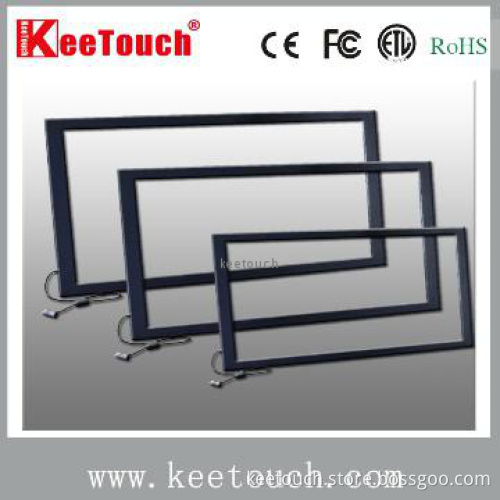

60inch IR touch screen/60inch Infrared touch screen/4 points/6 points

60\" IR touch screen(2 points,4 points,6 points)

32\"-65\" inch Infrared touch display
Vandal proof glass
With or without glass ,assembled by self
Without glass save muchcost

       1,product features

• High stability. Any changes of time or environment will not cause any drift
• Comprehensive adaptability. The touch screen resists any interference from current, voltage or static and is suitable for use in particularly harsh or rugged environments. High light transmittance. The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.
• Long service life. Extremely durable, scratch resistant and with a touch point density as high as 4096 x 4096.
• Easy activation. No touch pressure is required; no special material is required for touch activation; any material,whether soft or hard, whether conductor or nonconductor can be used as an activating stylus.
• detachable. Easy assembling and very convenient for transportation.
• Built-in Controller.

  2,Technical Specification

  1)Physical performance



  Resolution	4096×4096
  Transparency	>95%
  Accuracy	2mm
  Responding time	<16ms
  Self-checking Technique	Support



  2)Operating Characteristic







  Touch Activation Force	No pressure required
  Touch Times	Unlimited
  Minimum Touch Object	5mm
  Lift Time	5 years
  Calibration	1 time





  3)Electrical

  Operating Voltage	4.75~5.25V;
  Operating Current	400~440MA
  Interface	USB2.0,Rs232
  Storage Temperature	-40~70 degree
  Working Temperature	-20~65 degree



  3,Dimension

  Active area dimension:1333.4mm(L)x 749.3mm(W).

  Outline area: 1404.4mm(L)x 820.3mm(W)

  For the drawing, please refer the attachment.

  4,Touch driver

  Supporting O/S:Microsoft Windows 7 / XP / 2000

  Linux:RedHat 9.0 , Fedaro , Ubuntu , Suse , Debian





• 5,packaging
