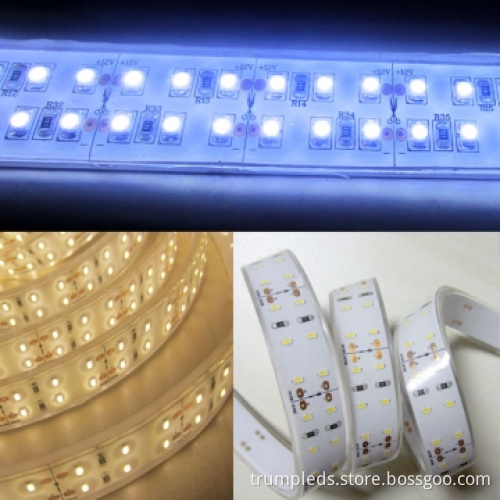

High Quality LED Rigid Strip 3014

The product specification

LED type: SMD 3014

Light lumen: 690lm/m

Product length: sample 1 M/PCS, standard 5m/rool

PCB color: white board/yellow board

LED spacing: 16.67 mm

Product size: 5000x11x4.5mm

PCB width: 18 mm

Light angle: 120 °

Lifespan: more than 40000 hours

Waterproof : IP68

Certificate: The authentication test standard,

CE certificate No.: WSCT11090520E

Shelf life: 3 years

Main Parameter

Part No.	LEDQ\'ty	Color	CCT Range	Packaging	Voltage	Current	Power	Lumen
AA1C2W01	60LEDs/M 3014 smd	WW	3035±185K	sample  1 m/pcs  Standard  5 M/rool	DC12V	0.6A/m	7.2w/m	690lm/m
AA1C2P01	PW	4475±225K
AA1C2C01	CW	6500±500K
AA1C3W01	120LEDs/M 3014 smd	WW	3035±185K	1.2A/m	14.4W/m	1380lm/m
AA1C3P01	PW	4475±225K
AA1C3C01	CW	6500±500K
AA1CDW01	180LEDs/M 3014 smd	WW	3035±185K	1.8A/m	21.6W/m	2070lm/m
AA1CDP01	PW	4475±225K
AA1CDC01	CW	6500±500K



Product features

1.Compared  with the same light number 3528 soft light, it has the same price article, but higher higher flux per meters

2.Compared  with the same power 5050 led flexible light, it has higher lumen ans lower price

3.PU plastic whole irrigation technology LED strip lights, excellent weatherability and ultraviolet radiation resistant performance, in outdoor sunlight can ensure that 3-5 years or above the same yellow, high and low temperature resistance, moistureproof waterproof, protection grade IP68, impact resistance, heat dissipation good, and thus enhance the soft light of article LED quality and service life

4.PU plastic product fill after show color index Ra can improve 6% ~ 10%

5.PU plastic whole irrigation technology product water imbibition low article LED lights, refractive index is high

6.Exquisitely carved, pervious to light rate is high, and surface smooth, the product touch, vision is good

7.Flexibility is good, may bend at will
