CSA UL cUL approved t8 u bend v-shape led tube
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Driver | Internal and external |
|---|---|
| End cap | Bi pin |
| Color | 2700-10000K |
| Voltage | AC120-277V |
| SMD3528 | 120PCS |
| Life | 50000hrs |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Natural White |
| Power | 18W |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description
CSA UL cUL approved t8 u bend v-shape led tube
Specifications
u shaped t8 led tube
1.hight efficiency>120lm/W.
2.PF>0.95,THD<18%
4.Good heat dissipation.
5.Life span>50,000 hrs
6.internal driver&external driver
Advantages of u shaped t8 led tube:
1. UL CUL CSA CE certifications offer,UL account:E349847, CSA NO.:252050
2. internal/external driver tube is ok
3. 1 driver for 1 tube,2 tubes,3 tubes,4 tubes are optional,dimmable is available
4. High lumens and wide input voltage. luminous efficacy can be 96-130lm/w, AC 100-277V,277-347v input voltage. Power influence factors can be 95%, color rendering index can be 90.THD<10%, All your requirment can be design.
5. white/pink/purple all colors are available
6.5-year warranty, 50000hrs life span
Certificates for u shaped t8 led tube:
Parameters of u shaped t8 led tube:
| Item No. | FY-T8-UX |
| Size | 2ft |
| Power supply | internal/external isolated(UL No.:E353331) |
| Input Voltage | AC100-277V/AC277-347V |
| Watts | 18W |
| LED | 288pcs Epistar SMD2835 |
| CCT | 2700-7000K |
| CRI | >80 OR >70 |
| Efficiency | 120lm/w for CRI>70,120lm/w for CRI>80 |
| Lumens | 2160lm for CRI>70,2000lm for CRI>80 |
| Beam angle | 120° |
| Certificates | CSA(252050),UL/cUL(E349847),LM80,CE,ROHS |
| Warranty | 5 years |
| Lead time | 5-7 days for less than 300pcs |

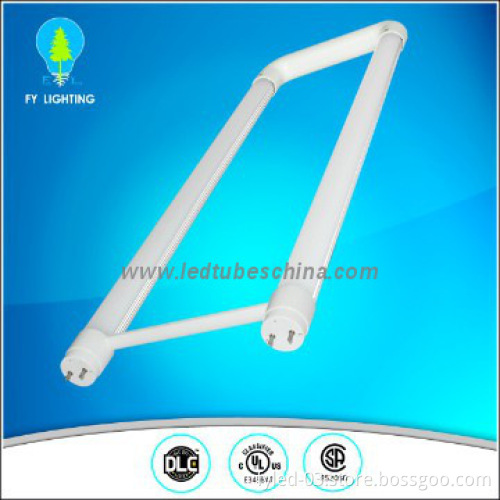

Pictures of u shaped t8 led tube :
Test report of u shaped t8 led tube:
Production&Quality Control of u shaped t8 led tube:
1.QC in every production process
2.Great material for heat sink:
72Hrs for aging light soure,
72Hrs for aging IC,compacitor,and resistor
drop test from the height of 1.2m in 6 directions, hi-pot test 4800V for 1 min and so on.
1, Living room, bedroom, washroom
2, School, office, hospital
3, Factory, plant, warehouse
4, Supermarket
5, Emergency lighting
6, Display case lighting
7, Bus, shuttle, rail car, etc
u shaped t8 led tube factory show:
Meeting Room
Our team :
Package of u shaped t8 led tube:
Products group from FY LED tube
a. T8 Led tubes
b. U shape Led tubes
c. Led panel lights
d. Led tubes for freezer
e.Emergency Led tubes
f. Motion sensor Led tubes
g.Freezer LED tubes
h.T5 LED tubes
Additional Information
| Payment Terms | L/C, T/T, Credit Card, Western Union, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | 1-100 is 5 working days, 101-1000pcs is 10 working days, 1001pcs above depends |
| FOB Port | Shenzhen |
| Loading Info | By Air or Sea |
| Packing Info | Paper tube packing or Inlay packing |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
