347v CRI>90 120lm/w U shape t8 ul led tube
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| THD | <20% |
|---|---|
| PFC | >0.95 |
| Voltage | 100-277V |
| Efficacy | 120lm/W |
| Drive supply | internal driver |
| Life | 50,000hrs |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Power | 18W |
| Illuminant | SMD |
Detail Description
347v CRI>90 120lm/w U shape t8 ul led tube
Specifications
led u tube
1.hight efficiency>120lm/W.
2.PF>0.95,THD<18%
4.Good heat dissipation.
5.Life span>50,000 hrs
6.internal driver&external driver
Advantages of led u tube:
1. UL CUL CSA CE certifications offer,UL account:E349847, CSA NO.:252050
2. internal/external driver tube is ok
3. 1 driver for 1 tube,2 tubes,3 tubes,4 tubes are optional,dimmable is available
4. High lumens and wide input voltage. luminous efficacy can be 96-130lm/w, AC 100-277V,277-347v input voltage. Power influence factors can be 95%, color rendering index can be 90.THD<10%, All your requirment can be design.
5. white/pink/purple all colors are available
6.5-year warranty, 50000hrs life span
Certificates for led u tube:
Parameters of led u tube:
| Item No. | FY-T8-UX |
| Size | 2ft |
| Power supply | internal/external isolated(UL No.:E353331) |
| Input Voltage | AC100-277V/AC277-347V |
| Watts | 18W |
| LED | 288pcs Epistar SMD2835 |
| CCT | 2700-7000K |
| CRI | >80 OR >70 |
| Efficiency | 120lm/w for CRI>70,120lm/w for CRI>80 |
| Lumens | 2160lm for CRI>70,2000lm for CRI>80 |
| Beam angle | 120° |
| Certificates | CSA(252050),UL/cUL(E349847),LM80,CE,ROHS |
| Warranty | 5 years |
| Lead time | 5-7 days for less than 300pcs |

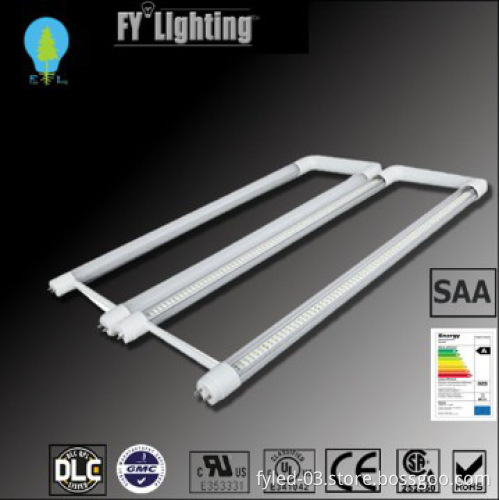

Pictures of led u tube :
Test report of led u tube:
Production&Quality Control of led u tube:
1.QC in every production process
2.Great material for heat sink:
72Hrs for aging light soure,
72Hrs for aging IC,compacitor,and resistor
drop test from the height of 1.2m in 6 directions, hi-pot test 4800V for 1 min and so on.
1, Living room, bedroom, washroom
2, School, office, hospital
3, Factory, plant, warehouse
4, Supermarket
5, Emergency lighting
6, Display case lighting
7, Bus, shuttle, rail car, etc
led u tube factory show:
Meeting Room
Our team :
Package of led u tube:
Products group from FY LED tube
a. T8 Led tubes
b. U shape Led tubes
c. Led panel lights
d. Led tubes for freezer
e.Emergency Led tubes
f. Motion sensor Led tubes
g.Freezer LED tubes
h.T5 LED tubes
Additional Information
| Payment Terms | T/T, Western Union, Money Order, Others |
|---|---|
| Minimum Order | 1PCS |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | led u-tube lampFor samples:6-8 days;For large order,like 1000pcs,15-18 days. |
| FOB Port | Guangzhou,Hong Kong,Shenzhen |
| Loading Info | 2ft led t8 u bend tubeexpress door to door service,by air,by sea three ways to let you choose! |
| Packing Info | 2ft led t8 u bend tube1.By pallet:20pcs per carton,carton size for 4ft:132*25*21cm;2.By paper tube,20pcs per carton,size for 4ft:135*26*23cm. |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
