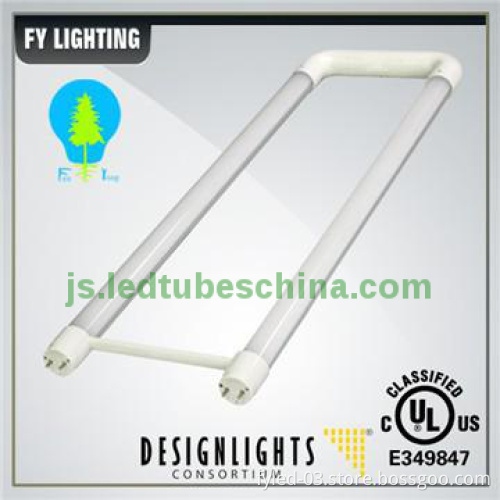

UL CUL approved U Shape led tube lighting 18W
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Luminious efficiency | >105lm/w |
|---|---|
| PFC | >0.9 |
| LED Quantity | 288pcs |
| CCT | 2700~6500K |
| CRI | >80 |
| Life | 50000 |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Cool Color |
| Power | 18W |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description
UL CUL approved U Shape led tube lighting 18W
Our Advantage:
※ Passed CE,Rohs,CSA,DLC,VDE,UL,CUL.
※ Factory sale directly,with competitive price.
※ ODM/OEM is ok,can custom for you.
※ Have our independent research and development team.
※ With strict control quality team.include more than 20 people.
Our Product Advantage:
※ High luminous efficiency:105-110lm/W.75flux/3m
※ With best material,2/3 aluminum tube and aluminum board+1/3 PC cover.
※ The Power factory(PFC) all can >0.9.
※ About Led driver:Isolated ,so very safe for people.
※ About lifespan and warranty:>50000 hours,3-5 years warranty.
※ Beautiful appearance, thick heat sink, good for heat releasing
Strict quality control
※ Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰
※ series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
※ drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
※ 24hrs for burn-in light source
※ 24hrs-48hrs for burn-in drivers and shorts
※ 48hrs-72hrs for burn-in leakage
※ 48hrs-72hrs for burn-in IC,capacitance and resistor
※ Passed CE,Rohs,CSA,DLC,VDE,UL,CUL.
※ Factory sale directly,with competitive price.
※ ODM/OEM is ok,can custom for you.
※ Have our independent research and development team.
※ With strict control quality team.include more than 20 people.
Our Product Advantage:
※ High luminous efficiency:105-110lm/W.75flux/3m
※ With best material,2/3 aluminum tube and aluminum board+1/3 PC cover.
※ The Power factory(PFC) all can >0.9.
※ About Led driver:Isolated ,so very safe for people.
※ About lifespan and warranty:>50000 hours,3-5 years warranty.
※ Beautiful appearance, thick heat sink, good for heat releasing
Strict quality control
※ Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰
※ series of testing like shaking test, low and high temperature test (-20°C~ 65 °C)
※ drop test from the height of 1.2m in 6 directions, hi-pot test 1500V for 1 min and so on.
Burn-in test
※ 24hrs for burn-in light source
※ 24hrs-48hrs for burn-in drivers and shorts
※ 48hrs-72hrs for burn-in leakage
※ 48hrs-72hrs for burn-in IC,capacitance and resistor
| No | Items | Date |
| 1 | Operate Voltage | AC120-277V AC, |
| 2 | Frequency | 50/60HZ |
| 3 | Driver | Internal |
| 4 | Led Type | SMD3528 |
| 5 | Led Quantity | 288pcs |
| 6 | Power input | 18W |
| 7 | Power Method | Single/Double End |
| 8 | Lumens | 2000lm |
| 9 | End cap option | Plastic aluminum |
| 10 | Lens Option | Frosted,transparent,ribbed |
| 11 | CCT | ww(2700-3200k)nw(4000-4500k)cw(6000-6500k) |
| 12 | CRI | >80Ra |
| 13 | Beam Angle | 120° |
| 14 | Net Weight | 0.46kg/pcs |
Dimension:
Contact way:E-mail:lisa@ledtubeschina.com
Mobile number: 86-15811829453,
Phone number:86-0755-61190333-807
Skype: lisa.chen848
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order, Paypal |
|---|---|
| Minimum Order | 1pc |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | if sample.the time is within 7 days.if large order,the the delivery time will be 7-15 days |
| FOB Port | Shenzhen |
| Loading Info | BY express:3-5 working days by air: 5-7 working daysby sea:25-20days |
| Packing Info | Carton:620*480*480mmQuantity:20pcs/cartonGross Weight:11kg/carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
