LED U Shape bend 18W external driver UL/cUL approved
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Lamp Type | LED U bend |
|---|---|
| Voltage | AC 120-277V |
| THD | <20% |
| PF | >0.95 |
| Power supply | Isolated driver |
| Life | >50,000hous |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Cool Color |
| Voltage | 90-260V |
| Power | 18W |
| Illuminant | SMD |
Detail Description

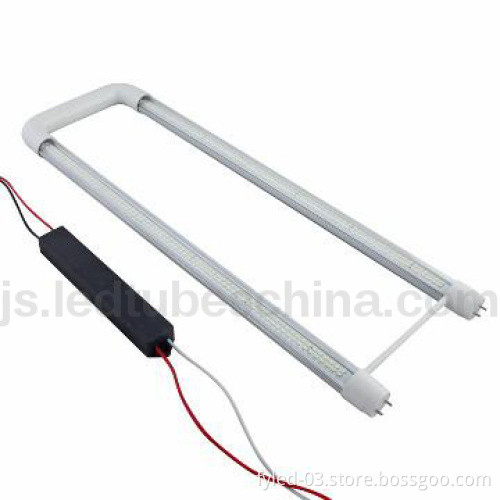

LED U Shape bend 18W external driver UL/cUL approved
Discription:
FY\'s LED U ben are high quality replacements of standard fluorescent tubes (T8 U Tube), These LED U Tube lights use surface mount diodes to provide 50,000+ hours of lifetime. Exceptional thermal management is achieved using a ribbed aluminum heat sink with a ‘D’ channel extrusion which is thermal bonded to an aluminum core PCB carrying the LED chips. The outer shell is a robust design with a shatterproof polycarbonate lens. A variety of color temperatures are available, making this product ideal for thousands of lighting applications
Specification:
| Model No. | FY-T8U-288E |
| Wattage | 18W |
| Voltage | AC120-277V |
| Frequency | 50-60Hz |
| PF | >0.9 |
| THD | <20% |
| CRI | >80Ra |
| LEDs | 288 |
| Lumens | 2000Lm |
| Beam Angle | 120degrees |
| CCT | 2700-70000K |
| PC cover | Clear/Frosted |
| Certificates | UL CSA CE RoHS |
UL cUL approved AC120-277V LED T8 U tube with External driver: 2ft. file number: E349847, E341042, E353331 .
UL cUL approved AC100-277V LED T8 U tube with Internal driver: 2ft. file number: E349847, E341042.
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 20 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | Sampe order:5-7daysMass production:15days |
| FOB Port | Shenzhen |
| Loading Info | By Express , by air or sea |
| Packing Info | 20pcs/box , 64x43x43cm/box |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, North America, Western & Southern Europe |
