cUL/UL certified u shape t8 led tube with internal /external driver
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Lamp Type | u shaped led tube |
|---|---|
| Voltage | AC 120-277V |
| THD | <20% |
| PF | >0.9 |
| Power supply | Isolated driver(internal/external) |
| Life | >50,000hrs |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Lamp Base | G13 |
| Length | 60cm |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Power | 18w |
| Illuminant | SMD |
Detail Description

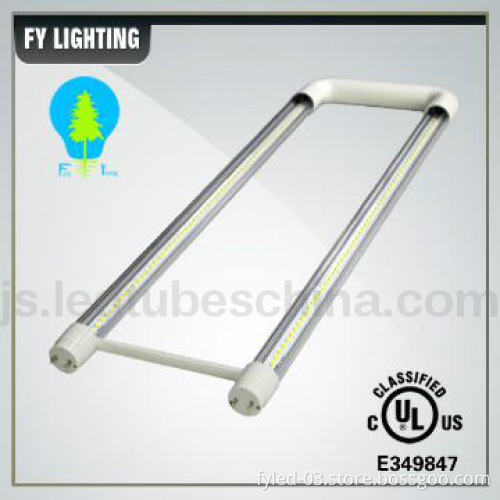

cUL/UL approved u shaped t8 led tube
Discription:
FY\'s LED U ben are high quality replacements of standard fluorescent tubes (T8 U Tube), These LED U Tube lights use surface mount diodes to provide 50,000+ hours of lifetime. Exceptional thermal management is achieved using a ribbed aluminum heat sink with a ‘D’ channel extrusion which is thermal bonded to an aluminum core PCB carrying the LED chips. The outer shell is a robust design with a shatterproof polycarbonate lens. A variety of color temperatures are available, making this product ideal for thousands of lighting applications
Specification:
| Model No. | FY-T8U-288 |
| Wattage | 18W |
| Voltage | AC120-277V |
| Frequency | 50-60Hz |
| PF | >0.9 |
| THD | <20% |
| CRI | >80Ra |
| LEDs | 288 |
| Lumens | 2000Lm |
| Beam Angle | 120degrees |
| CCT | 2700-70000K |
| PC cover | Clear/Frosted |
| Certificates | UL CSA CE RoHS |
Advantage:
2. Top quality material for excellent heat dissipation performance
3. Beautiful appearance, thick heat sink, good for heat releasing .2/3 Aluminum board and aluminum housing guarantee double heat releasing avoid light depreciation and prolong lifespan up to 50,000 hours
4. Top safety: Isolated driver.the driver manufacture by ourselves and passed the UL ,the UL NO.E353331.
5. LM80 LM79 test report, IES file
Strict quality control , ISO9001-2008 certificate Strict quality control: 72hrs burn-in test before shipment,low failure rate within 3‰.
A series of testing like shaking test, low and high temperature test (-25°C~ 65°C),drop test from the height of 1.2mm in 6 directions ,hi-pot test 1500V for 1 min and so on.
1. 24hrs for burn-in light source
2. 24hrs-48hrs for burn-in drivers and shorts
3. 48hrs-72hrs for burn-in leakage
4. 48hrs-72hrs for burn-in IC,compacitor and resistor
3-5 years warranty , under the warranty ,over 35% depreciation of light output compared with initial EXW lumens, we are responsible for our clients .
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | NO |
| Delivery Details | Sampe order:5-7daysMass production:15days |
| FOB Port | Shenzhen |
| Loading Info | By Express , by air or sea |
| Packing Info | 20pcs/box , 64x43x43cm/box |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, North America, Western & Southern Europe |
