AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
  • AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
  • AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
  • AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
  • AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube

AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Model GE-T1523
Material AL+PC
Beam Angle 120°
CRI >80
Luminous flux 2400-2600lm
Life 35000h
Package Yes
Light Source Chip Epistar
Power 23W
Tube Diameter T8
Color Tones Warm Color
Lamp Base G13
Voltage 90-260V
Illuminant SMD
Length 150cm

Detail Description

AC100-277V CRI>80 3 years warranty UL FCC 5ft 23W 2500lm tube
Power Consumption 23W
Input Volatage AC100-277V,50/60Hz
Light Source Epistar SMD2835
LED Quantity 240pcs
Power Factor >0.95
Power Efficiency >85%
Luminous Flux 2500-2600LM
LED Luminous Efficiency 110-120Lm/W
CRI >80
Viewing Angle 120°
Lamp Holder T8/G13
Housing material Aluminum+PC
PC Cover Transparent/Frosted/Striped
Certificate UL/FCC/CE/RoHS
Warranty 3 years
Life Span  >3,5000h
Power Supply Internal Driver
Working Temperature -20°C~50°C

2. Genice UL T8 LED tube series(UL NO.:E347185)

Modle Dimension Power LED Quantity Luminous Flux
GE-T610 D26*602mm 10W 96pcs 1000-1200lm
GE-T1218 D26*1212mm 18W 192pcs 1800-2000lm
GE-T1523 D26*1512mm 23W 240pcs 2400-2600lm

3. Advantages

 1.Constant current isolated circuit design with wide input voltage&frequency

 2.High conversion efficiency and PF,no flicker,no delay,no UV noise

 3.Advanced thermal managing/dissipation techniques,low brightness decay

 4.Module structural design ,easy to maintenance and replacement

 5.>65%Energy saved than conventional lamp,Eyeshielded,enviroment-friendly

 6.No mercury ,accord with ROHS standard,100% recyclable

 7.Lifespan more than 35000 hours ,10 times longer than conventional lamp

 8.3 years warranty + 3 months guarantee for replacement of quality issues

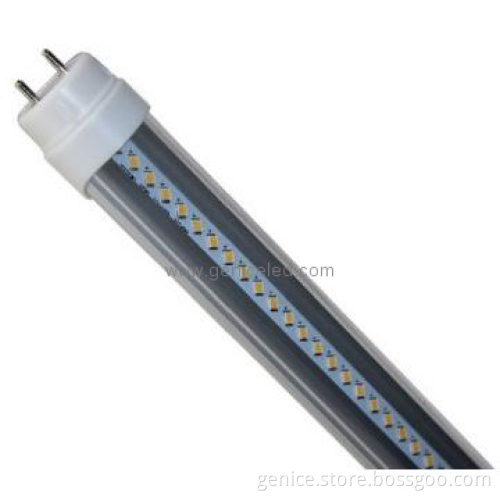

4. Product photos





5. Lux distance curve



6. Dimension



7. Package

Additional Information

Payment Terms L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others
Minimum Order 10
Lead Time / Delivery Time 7 Day(s)
Sample Available YES
Delivery Details Sample order:3-5 workdaysBulk order:10-15 workdays
FOB Port Hong Kong,Shekou,Shenzhen
Loading Info Delivery by express(DHL,UPS,TNT,FEDEX) or by air/sea
Packing Info Carton MeasLxWxH(mm)1550*218*150 20pcs/carton GW: 12 Kg
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
