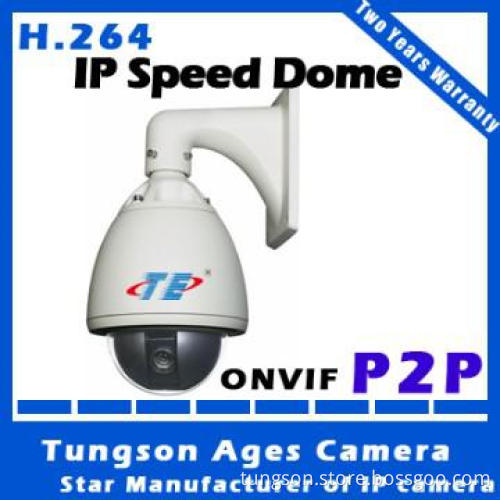

ONVIF H.264 2 Megapixel IP HD infrared 2.0MP Speed Dome Camera

TE-IPSD822E

7-inch HD high Speed Dome( Original SONY EH6300 All-in-one Chip)
Sensor Type: 1/3” EXmor CMOS
Resolution: 2 megapixel 1920*1080
Optical Magnification:*20
Focal Length:  4.7—94.0mm
Horizontal Viewing Angle: 55.4—2.9 degree
MAX Power Consumption: 24W, Power Input Mode: DC 12V
Weight: 3600g
Specifications:
1:System Architecture: Embedded RTOS design, dual-core 32-bit DSP (TI Da Vinci DM365)
2:Video Processiong: H.264 video encoding, support dual-stream. AVI format; support stream 0.1M—8Mpbs adjustable
3:Frame Rate: 1.3 megapixel 20 frame, 1megapixel and below, 25 frame(all real-time), support 1—25 frame/s adjustable
4:Image Output: Main Stream:1280*960, 1024*768,1280*720；Sub-stream:320*240,352*192,320*192,288*192,256*192
5:Network Interfaces: 1 network port 10/100M; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UOnP network protocol
6:Digital Zoom: 12*(optical zoom 240 times)
7: horizontal Viewing Angle: 1080p/30 mode: 55.4(wide-angle end) to 2.9 °(remote) 720p/60, 30mode: 37.6°( wide-angle end) to 1.95°（ remote）
8: Minimum object distance: 10mm( wide end) to 800mm（remote）
9: Minimum Illumination: high sensitivity mode; 0.5lx(F1.6, 50 IRE ICR Close), 0.095lx(F1.6, 50 IRE, ICR open)
10: Conventional Mode: 1.7lx(F1.6, 50IRE, icr close), 0.3lx(F1.6, 50IRE, ICR open)
11:Storage Temperature: -20℃ to 60℃
12: Storage Humidity: 20—95%
13:Operating Humidity: 20—80%
14: Mobile Monitoring: iphone/iPad/ Android/Symbian/ Windows Mobile
