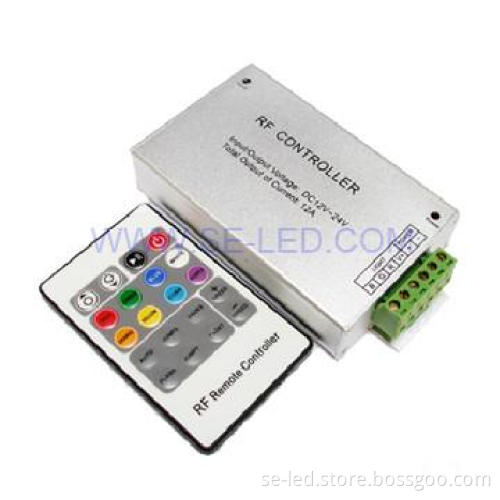

20Key High quality Remote LED Controller

Parameter of Remote LED Controller:
Working Temperature: -20^oC~60^oC
Supply Voltage: DC5V, 6V, 12V, 24V optional
Output: 3 Channels
Transmission/Receiving Frequency: 433MHz
Remote Distance: 10~15M
Controller Dimension: L128*W64*H24 mm
Remote Dimension: L85*W52*H7 mm
Packing Size: L145*W95*H50mm
Net Weight: 165g
Gross Weight: 205g
Static Power Consumption<1W
Output Current<4A (each Channel)
Output Power: 5V<60W, 12V<144W, 24V<288W

Note:
1. When installing, try to avoid minefields, strong magnetic fields and high-pressure region.
2. Ensure a solid connection to avoid short circuiting to the components that could trigger fires.
3. Install in a well-ventilated place to ensure appropriate environmental temperature.
4. Please check the local voltage, power adapter is in line with product requirements, whether the definition of positive and negative power supply and product line.
5. To prohibit the live wiring, check the wiring and short-circuit protection.

Direction for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Standard changes as follows:


Button	Button Description	Remarks
	ON/OFF	you could turn on or turn off the output of controller
	Play/Stop	Play or stop led changing, easy to observe led static effect
	Brightness increase	the brightness series will add once when you press it
	Brightness decrease	The brightness series will reduce once when you press it
RED	Static red	Brightness is adjustable, Speed is unadjustable.
GREEN	Static Green
BLUE	Static Blue
WHITE	Static white
ORANGE	Static Orange
YELLOW	Static Yellow
CYAN	Static cyan
PURPLE	Static Pink
AUTO	Automation	Moving all the models automationly
JUMP3	3 Color step change	Speed and brightness are adjustable
FADE3	3 Color fade change	Speed is adjustable, Brightness is unadjustable
SPEED+	Speed increase	The speed will add once when you press it.
FLASH	Seven colors flash frequency	Speed and brightness are adjustable
JUMP7	7 Color step change
FADE7	7 Color fade change	Speed is adjustable, Brightness is unadjustable
SPEED-	Speed decrease	The speed series will reduce once when you press it
