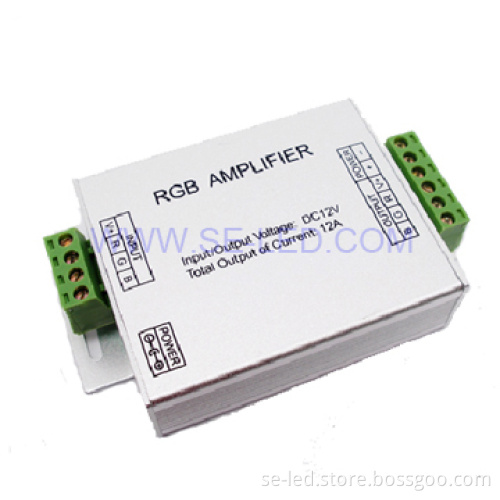

12V Waterproof LED RGB Amplifier

12V Waterproof LED RGB Amplifier  applies to all the voltage-controlled LED controller in our company, It can receives PWM (Pulse Width Modulation), each time add one Waterproof LED Amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.

12V Waterproof LED RGB Amplifier Parameter:
Working Temperature: -20^oC~60^oC
Supply Voltage: DC5V, 6V, 12V, 24V optional
Output: 3 Channels
Connection Mode: Common Anode
External Dimension: L105*W65*H25mm
Packing size: L122*W85*H42mm
Net Weight: 115g
Gross Weight: 145g
Static Power Consumption<1W
Output Current<4A (each channel)
Output Power: 5V<60W, 12V<144W, 24V<288W

12V Waterproof LED RGB Amplifier Attention:
1. This product is non-waterproof, please avoid the sun and rain. Put it in a waterproof box if install outdoor.
2. The condition of radiation will affect the working life of controller, please install the product in a good radiation condition.
3. Please check if the output voltage of the LED power supply comply with the voltage range of the product.
4. This product is a high current device, please ensure a solid connection in order to avoid poor contact to damage parts and trigger fires.
5. Ensure all wire connection are correct before power debugging, which is to avoid lamps to be burnt because of wrong connection.
6. All the switching power supply must be well grounded, so as not to affect the working life of LED.
