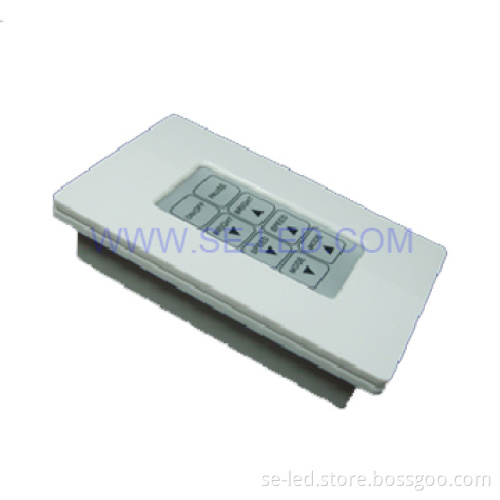

8Key Synchronous Panel LED Controller for LED Light

Panel 8key LED Controller adopts the advanced micro-control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; Panel 8key LED Controller has many advantages such as easy connection and simplicity to use; According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

Parameter:
Working Temperature: -20^oC~60^oC
Supply Voltage: DC5V, 6V, 12V, 24V optional
Output: 3 Channels
Connection Mode: Common Anode
External Dimension: L120*W75*H31mm
Packing Size: L145*W95*H50mm
Net Weight: 105g
Gross Weight: 135g
Static Power<1W
Output Current<3A (each Channel)
Output Power: 5V<45W, 12V<108W, 24V<216W

Direction for Use:
1.  Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.  There are six keys on the controller panel, the function of each key as follows:
   ON/OFF: you could turn on/off controller at any time;
   PAUSE: can play or pause control button, the step of the brightness add 1 by each pressing, a total of 256 steps;
   Bright +: A brightness control button, the step of the brightness add 1 by each pressing, a total of 256 steps;
   Bright -: The step of the brightness subtract 1 by each pressing;
   SPEED +: The step of the speed change add 1 by each pressing, a total of 100steps;
   SPEED -: The step of the speed change subtract 1 by each pressing;
   MODE +: The coloe change button, select up, total of 21 modes;
   MODE -: The coloe change button, select down.
3.  Standard changes funtion as the following form:


No	Patterns	Remarks	No	Patterns	Remarks
1	Static red	Brightness is adjustable, Speed is unadjustable.	12	Red stroboflash	Speed and Brightness are adjustable
2	Static blue	13	Blue stroboflash
3	Static purple	14	Purple stroboflash
4	Static green	15	Green stroboflash
5	Static yellow	16	Yellow stroboflash
6	Static cyan	17	Cycan stroboflash
7	Static white	18	White stroboflash
8	Three-color jumpy changing	Speed and brightness are adjustable	19	R/B crossfade	Speed is adjustable, Brightness is unadjustable
9	Seven-color jumpy changing	20	B/G crossfade
10	Three-color gradual changing	Speed is adjustable, Brightness is unadjustable	21	G/R crossfade
11	Seven-color gradual changing
