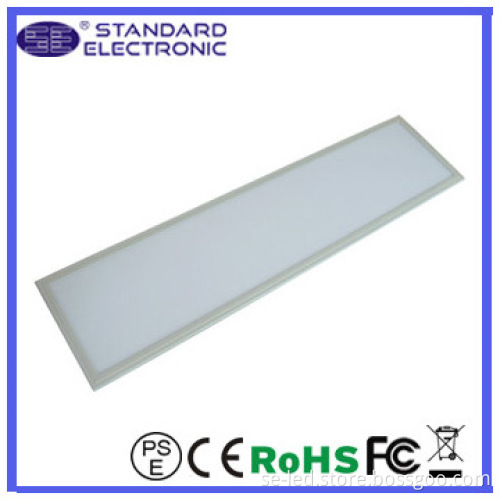

Pure White Indoor Ultra Thin 24W Dimmable 300x600mm LED Panel
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Power | 24W |
---|---|
LED Qty | 252pcs 2835SMD |
Certification | CE RoHS FCC |
Size | 300*600mm |
High Luminous Flux | 1680lm |
Life (Hours) | 50000-80000 |
Application | Bathroom, Bathroom Room, Car Park, Church, Cinema, Gallery, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School |
Material | Acrylic, Aluminum, PMMA |
Light Source | LED |
Voltage | 220V |
Detail Description
Pure White Indoor Ultra Thin 24W Dimmable 300x600mm LED Panel as its luminous body. The anodized aluminum frame is stylish and fashionable with everlasting color. 24W LED Panel Light are powered by low voltage constant current driver, which is safety, energy-saving and long life. We can do Warm White, Pure White and Cold White LED Panel Light.
Model | SEP-0306W-24 |
lighting source | SMD2835 |
LED QTY | 120pcs |
Power consumption | 24W(includes driver) |
Input voltage(Driver) | 100-240VAC/50~60hz |
Input voltage(Lighting) | AC100-240V DC |
Constant current | 300mA |
Luminous Flux | >1780Lm(Pure White) >1520Lm(Natural White) >1260Lm(Warm White) |
Efficiency | ≥85% |
PF | ≥0.90 |
LED Lifespan | ≥50000H |
CCT | 2800~3200K(Warm White) 4000~4500K(Natural White) 6000~6500K(Pure White) |
Luminous | 1680lm (±5%) |
Luminescence efficiency | 70lm/w |
Luminosity | >1640ux(1.0Meter, Pure white) |
Bean-angle | 120° |
Ra | Ra≥70 |
Temperature rising | <20℃ |
Operation temperature | -40~+50℃ |
Relative humidity | 10%-80%RH |
Fixture Material | Oxidized aluminum+high quality PMMA(Acrylic)+PC diffuser |
Dimension | 300X600mm |
Net Weight(includes driver) | 5.0KG |
Protection grade | IP42 |
Insulation Level | CLASS Ⅱ |
Environmental | All materials meet with RoHS compliance |
Certificate | CE,RoHS, PSE, FCC |
Features:
1. Energy saved up to 80%, high brightness, even lighting output.
2. Instant start, no flickering, no humming
3. New high efficiency constant current driver.
4. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED
5. No electrical wave, conforming to CE
6. Green environmental protection, lead-free material, conforming to RoHS
7. No RF interference.
More Type for choise
Part No. | Size | Power |
LED QTY |
Voltage | Luminous Flux | Weight | Package |
SEP-0303W-18 | 300*300*10mm | 18W | 84pcs 2835 | AC100-240V | 1260lm | 2.0kg | 350*420*55mm |
SEP-0303W-36 | 300*300*10mm | 36W | 168pcs 2835 | AC100-240V | 2520lm | 2.0kg | 350*420*55mm |
SEP-0306W-24 | 300*600*10mm | 24W | 120pcs 2835 | AC100-240V | 1680lm | 3.5kg | 405*650*55mm |
SEP-0306W-36 | 300*600*10mm | 36W | 180pcs 2835 | AC100-240V | 2520lm | 3.5kg | 405*650*55mm |
SEP-0606W-36 | 600*600*10mm | 36W | 180pcs 2835 | AC100-240V | 2520lm | 5.0kg | 650*705*55mm |
SEP-0606W-72 | 600*600*10mm | 72W | 360pcs 2835 | AC100-240V | 4800lm | 5.0kg | 650*705*55mm |
SEP-0312W-36 | 300*1200*10mm | 36W | 180pcs 2835 | AC100-240V | 2520lm | 7.0kg | 350*1250*55mm |
SEP-0312W-72 | 300*1200*10mm | 72W | 360pcs 2835 | AC100-240V | 4800lm | 7.0kg | 350*1250*55mm |
Applications:
Hotels
Conference/Meeting rooms
Factories and Offices
Commercial Purposes
Residential/Institution Buildings
Schools, Colleges and Universities
Hospitals
Places where energy saving and high color rendering index lightings required
Installation Types:
Suspending
Ceiling
Embedding
Trade Terms:
1. Payment: T/T, 30% before production, 70% before delivering, Western Union, Paypal.
2. Production lead time: 100~500pcs for 10 days, 500~1000pcs for 15 days.
3 Shipping: DHL, FedEx, UPS, TNT, Air or SEA.
4 Shipping port: SHENZHEN, Mainland China.
5 Discounts are offered based on order quantities.
Advantage:
1.Your inquiry related to our products or prices will be replied within 24hrs.
2. Well-trained and experienced staffs to help you locate the products in your best interest.
3. OEM & ODM production available.
4. 2year warranty.
5. Protection of your sales area, design and all your private information.
Standard Electronic Co., Limited (SE) is a high technology enterprise specialized in LED lighting products, a professional LED lighting manufacturer & supplier in China. Our products include LED High Bay, LED Flood Light, LED Tunnel Light, LED Downlight, LED Ceiling Light, LED Tube, LED Panel, LED Spotlight, LED Bulb, LED Strip, all of these products with good quality, perfect heat dissipation, long life span, low light decay and high luminous intensity, which are widely used for indoor and outdoor lighting.
Quality Control: Established in 2004, SE’s operation strictly follows the ISO9001 standard. The key material we source from Samsung, Cree, Bridgelux, Epistar, Mean Well, to assure a steady and top-grade quality.
R&D: SE owns a Lighting & Energy Saving Laboratory with Southwest Jiaotong University (Since 1896), and a Research Base with Shenzhen Polytechnic (Since 1993), these Professor and Doctor provide a strong support to our R&D team, which make efficient ODM available. We also got 6 Utility Model Patents in 2013.
Certification: SE’s management and operation audited by TUV Rheinland, all the products passed CE, ROHS, FCC and PSE, some types passed SAA, C-Tick and RCM.
Service: SE started to do export since 2007, some of our colleague with more than 10 years experience, which understand your need and concern well.
Customer: 80% of our products exported to more than 100 countries, our valued customer included: Shell Oil, Chrysler Auto, Fiat Auto, Sheraton Hotel, McDonald\'s, etc.
SE is willing and ready to be your best partner. Join us to achieve the mutual benefit, and let\'s make people\'s life brighter and more colorful!
Additional Information
Payment Terms | L/C, T/T, Credit Card, Western Union, Money Order, Paypal, Others |
---|---|
Minimum Order | 5pcs |
Lead Time / Delivery Time | 7 Day(s) |
Sample Available | YES |
Delivery Details | FEDEX/DHL/UPS/TNT send the goods to you 3-5days, and you check the goods to make sure everything is OK |
FOB Port | Shenzhen |
Loading Info | Express (FEDEX/DHL/UPS/TNT), Air-transport, Ocean shipping |
Packing Info | 5pcs per cartonCommon package:Plastic bag with carton boxWe offer special package design and OEM service with customer\'s design. |
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
