60*60CM LED Panel Light 48W 480PCS SMD3014 LED 3000LM
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Power Rate | 48W |
---|---|
Input Voltage | AC 90~260V |
LED Q\'ty | 480PCS |
LED Type | SMD3014 LED |
Lumen | 3000±100LM |
Voltage | 90-260V |
Material | Aluminum, PVC |
Application | Airport, Gallery, Garage, Hospital, Hotel, Meeting Room, Museum, Office, School, Shopping Mall |
Light Source | LED |
Detail Description

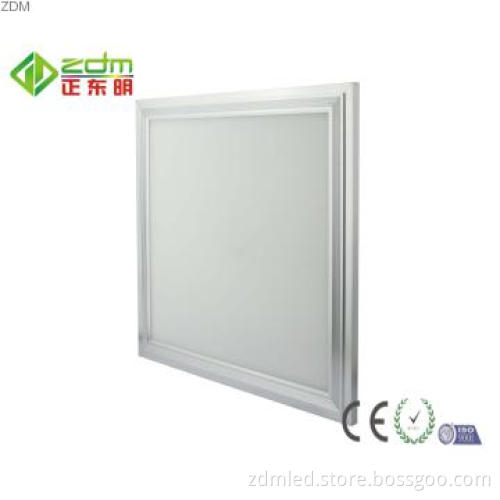

60*60CM LED Panel Light 48W 480PCS SMD3014 LED 3000LM
Item No.: ZDM-PF-6060-001
Product Specifications
1) Light Source: SMD3014 LED
2) Dimension: 600*600*12.5mm (L*W*H)
3) LED Qty: 480PCS
4) Power Rate: 48W
5) Input voltage: AC 85~265V
6) Color available: White 6000±500K, Warm White (3000±500K)
7) Lumen flux: 3000±100lm
8) Color Rendering Index: Ra≥ 75
9) Beam Angle: 120°
10) Housing material: Aluminum + PVC
11) Lifespan: >50, 000hrs
12) Warranty: 2 Years
13) CE & RoHS approved
14) IP rating: IP33
Product Features
1. Energy Saving. Saving 60%-70% electricity cost to traditional Panels
2. Super bright SMD LED, high luminous intensity and efficiency
3. No UV or IR radiation in the beam, mercury free; No noise, no flickering, instant power on & no warm up time required
4. Professional thermal management design, low heat emission
5. Using compact aluminum material with PVC panel cover, anti-shock, anti-moisture
6. Exquisite small appearance, easy to install with mounting brackets
7. CE & RoHS approval, work time over 50000hrs.
Applications
The LED panel light is ideal replacement for the traditional downlights, it has wide range of application such as:
1. Jewelry counter lighting
2. Commercial lighting
3. Restaurant, hotel
4. Artwork lighting
5. Display case
6. Amusement park
7. Home and office lighting
Packing details
Lined with EPE holder for inner box, and 4 boxes in an outer carton
LED Type | 480pcs LEDs (SMD3014) |
Power Rate | 48W |
Color Temperature | White 6000±500K, Warm White 3000±500K |
Luminous Flux | 3000±100lm |
Color available | warm white, pure white, cool white |
Dimension | 600*600*12.5mm |
Beam Angle | >120° |
CRI | >75 (Typically 75.6-76.8) |
Power Factor | >0.95 |
Input Voltage | AC 85~265v |
Frequency Range | 50~60Hz |
Material of Body | aluminum alloy frame and PVC cover |
IP rating | IP33 (indoor use) |
Operating Temperature | -20~65 degrees Celsius |
Net Weight | 3400 ±100g |
Dimmable Feature | Optional |
Life Span | >50,000hours |
Warranty | 2-year |
Additional Information
Payment Terms | T/T, L/C, Others |
---|---|
Minimum Order | 100pcs |
Lead Time / Delivery Time | 12 Day(s) |
Sample Available | YES |
Delivery Details | 30% advance payment, balance paid before shipment or B/L copy |
FOB Port | Shenzhen |
Loading Info | By Sea, Air, DHL, FedEx, UPS, etc. |
Packing Info | Lined with EPE holder for inner box, and 4 boxes in an outer carton |
Target Market(s) | Eastern Europe, Latin America, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
