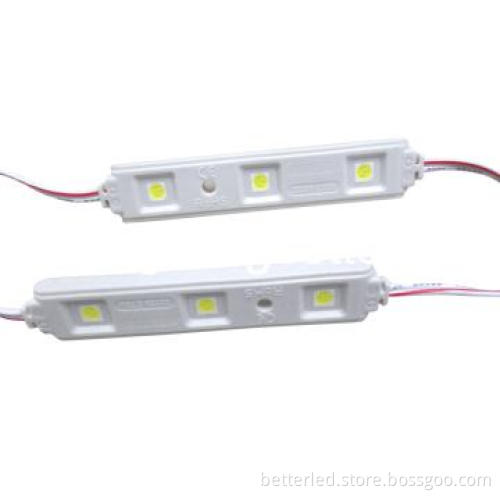

5050 3leds/pc injection LED module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Basic Specification

> Illumination parameter

Name	LED	Color	Wave length/Color temperature	Lumen (Single Module)	Angle
BE-ME5050WW3-A/G84	SMD5050	WW	2800-3200K	45LM±10%	120°
BE-ME5050NW3-A/G84	NW	4000-4500K	30LM±10%
BE-ME5050W3-A/G84	W	7000-8000K	45LM±10%
BE-ME5050CW3-A/G55	CW	10000-14000K	45LM±10%
BE-ME5050R3-A/G55	R	620-630nm	12LM±10%
BE-ME5050G3-A/G55	G	520-530nm	20LM±10%
BE-ME5050B3-A/G84	B	465-475nm	7LM±10%
BE-ME5050Y3-A/G84	Y	585-595nm	9LM±10%

> Electrical Parameter & working condition

> Product Feature

1、Adopt High lumen 5050 SMD LED, no light spot, with a low lumen recession and good consistency.

2、With a low power consumption and high lumen value, a long life-span, maintenance-free.

3、With a plastic injection technique for outer cover, this unique structure grants a better cooling effect.

4、IP Rate: IP65

5、DC 12V low voltage input, reliable and safe.

6、Adopt series-parallel connection circuit, 20Pcs for 1 string, each module could be singled out.

Payment Terms	T/T, L/C
Minimum Order	500pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
FOB Port	Shenzhen
Target Market(s)	Japan & Korea, Latin America, Oceania, Western & Southern Europe
