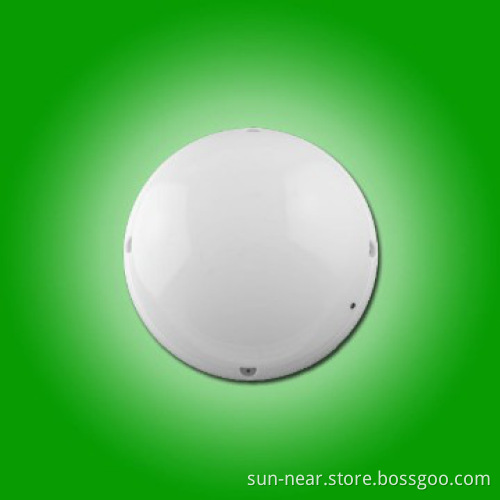

LED sensor lighting with 2835SMD for emergency lighting

LED sensor lighting with 2835SMD for emergency lighting

Technical parameters

Input voltage ( 50/60Hz)	AC 100-240V
Power consumption	14 W
Power factor(PF)	>0.9
LED Driver output voltage	DC30-40V
LED Driver output current	550mA ±25mA
Light source	2835SMD LED
Color Temperature	3000K /4000K /6000K (optional)
CRI	Ra>80
Flux luminous	700-900Lm
Luminous efficacy	75Lm/w
View angle	110°
Housing material	PC housing
IP Rating	IP 54
Life Span	Up to 35,000 hours
Operation temperature	-10 deg C to 40 deg C
Dimension	340*120mm
Package	375*375*110mm
Net Weight	2.0KG(approx)
Emergency:
Type	Maintained
Battery(High-Temperature)	9.6V 3.2AH Ni-MH rechargeable
Emergency output	30% nominal power
Emergency duration	>3 Hours
Charge time	< 12Hours
LED indication	Red: charging; Green: fully charged; Yellow: battery fault or disconnected
Test button	AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode
Microwave Sensor:
Sensor range	180 degree; 0.5 - 8M (adjustable)
Sensing interval	10s to 5min max (adjustable)
Sensing interval output	25% normal power

Product Features:
 1 LED lighting source: green and energy saving;
 2 IP54: available for both indoor and outdoor use;
 3 Anti-aging cover: Polycarbonate (PC) cover;
 4 Anti-glare design: no dizzy light;
 5 Healthy and safe: no UV, no infrared, no other Hazardous Substances;
 6 Stability: no noise, no flicker, resistance from vibration;
 7 Reliable: 2 years warranty.
