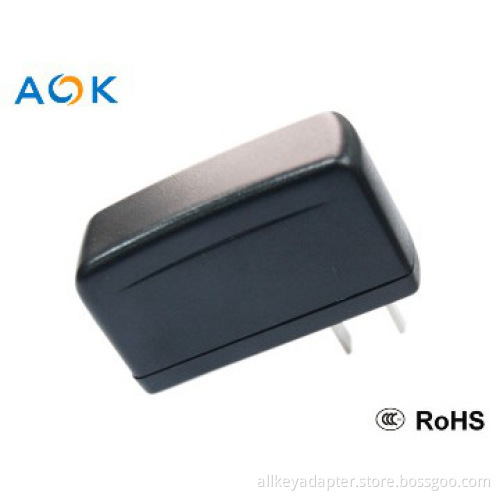

CCC Power Adapter wtih 5v output
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| USB Charger Charge Current | 0.1-1A |
|---|---|
| Power Plug Adapter Zone Of Application | China |
| USB Charger Output Voltage | 3-15VDC |
| Output | 3-15Vdc/0.1-1.2A |
| AC plug | Chinese |
| Size | 66*24*31.5mm |
| Type | wall mount |
| Output Voltage | 5 |
| Application | Camera |
| Type | Universal |
| Charge Current | 1000mA |
Detail Description
5W Power Supply with UL,GS,BS,SAA,CCC, PSE certificates
OEM ARE WELCOMED
Key Specifications for 5W Power Adapter:
Input: |
100-240v 50-60hz |
Output: |
3-15Vdc/0.1-1.2A |
Power: |
5W |
DC jack: |
5.5*2.1mm/5.5/2.5mm/4.0*1.75mm/3.0*1.35mm/3.5*1.3mm or as your request |
AC plug: |
SAA, ETL, GS, BS, PSE, CCC,PSE |
Protection : |
OVP,SCP,OLP |
Warranty: |
Full 12 months |
Color: |
Black/White |
MOQ: |
1000pcs |
Service: |
OEM/ODM |
Packaging: |
Pe bag,bubble bag,Carton,or as your requirements |
Delivery time: |
Within 15 working days( according to order quantity) |
Payment term: |
T/T |
Port: |
Shenzhen |
Certificates: |
SAA, ETL, GS, BS, PSE, CCC,PSE |
Charger Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065/IEC61558-2-7
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065/EN61558-2-7
CE Certificate(Europe): EN55022, 55024/55013,55020/55014-1,2
BS Certificate(Britain): BS EN60950-1/BS EN60065
ETL Certificate(North America): UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
| MODEL NO. | OUTPUT(V) | OUTPUT(A) | TPUT(W) MAX |
| AK00G-XXXYYYWZ | 3-4.9 | 0.01-1.20 | 5W |
| AK00G-XXXYYYWZ | 5-7.5 | 0.01-1.00 | 5W |
| AK00G-XXXYYYWZ | 7.6-10.0 | 0.01-0.66 | 5W |
| AK00G-XXXYYYWZ | 10.1-12.5 | 0.01-0.49 | 5W |
| AK00G-XXXYYYWZ | 12.6-15 | 0.01-0.39 | 5W |
AC Adapter Reliability:
Burn in: 100% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 240Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
Power Supply Protection:
Short Circuit Protection: The power supply will recover automatically after fault removed
Over Current Protection: The power supply will recover automatically after fault current removed
Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
Charger Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
Power Adapter EMC Compliance:
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B
5W Series Related Charger Pictures:
Why Choose All-Key?
1.Rich Experiences to Build a Custom Adapter for your needs
a.Custom Designed Desktop Power Supply for Specific Use with Doorbell System and POS. Below model was designed to have extremely low ripple. Output12Vdc with AC power cord soldered on the PCB
b. Custom Power Supply Designed for MADCATZ Cyborg
c.Charger was Specially Designed for Smartphone
All-Key Factory Pictures:
Adapters Safety Certificates:
We are working with:
All-Key Tourism Pictures:
Allkey Welfare Foundation:
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 15 working days after receive the advance payment to All-Key account |
| FOB Port | Shenzhen, |
| Loading Info | Air or ocean shipping as your requriments |
| Packing Info | PE bag+white box+carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
