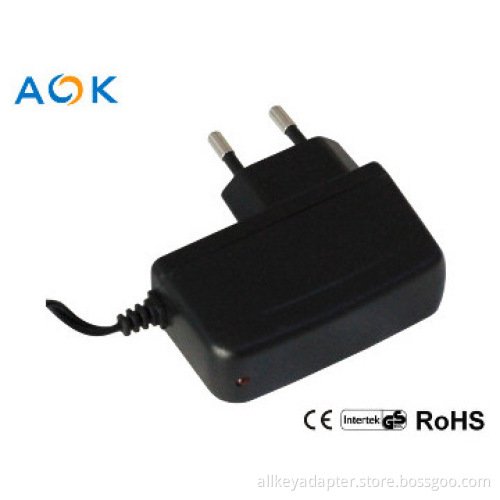

5w AC DC Adapter GS/CE approved
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| pcs/carton | 135pcs |
|---|---|
| N.W/PCS | 65g |
| G.W/cartor | 11KG |
| Dimension(mm) | 66*24*31.5 |
| color | black /White |
| Output Type | DC |
| Colour | White |
| Plug Type | EU |
Detail Description
Specification of power supply 5W
Input: |
100-240v 50-60hz |
Output: |
3-15Vdc/0.1-1.2A |
Power: |
5W |
DC jack: |
5.5*2.1mm/5.5/2.5mm/4.0*1.75mm/3.0*1.35mm/3.5*1.3mm or as your request |
AC plug: |
SAA, ETL, GS, BS, PSE, CCC,PSE |
Protection : |
OVP,SCP,OLP |
Warranty: |
Full 12 months |
Color: |
Black/White |
MOQ: |
1000pcs |
Service: |
OEM/ODM |
Packaging: |
Pe bag,bubble bag,Carton,or as your requirements |
Delivery time: |
Within 15 working days( according to order quantity) |
Payment term: |
T/T |
Port: |
Shenzhen |
Certificates: |
SAA, ETL, GS, BS, PSE, CCC,PSE |
Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065/IEC61558-2-7
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065/EN61558-2-7
CE Certificate(Europe): EN55022, 55024/55013,55020/55014-1,2
BS Certificate(Britain): BS EN60950-1/BS EN60065
ETL Certificate(North America): UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
| MODEL NO. | OUTPUT(V) | OUTPUT(A) | TPUT(W) MAX |
| AK00G-XXXYYYWZ | 3-4.9 | 0.01-1.20 | 5W |
| AK00G-XXXYYYWZ | 5-7.5 | 0.01-1.00 | 5W |
| AK00G-XXXYYYWZ | 7.6-10.0 | 0.01-0.66 | 5W |
| AK00G-XXXYYYWZ | 10.1-12.5 | 0.01-0.49 | 5W |
| AK00G-XXXYYYWZ | 12.6-15 | 0.01-0.39 | 5W |
Reliability:
Burn in: 100% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 240Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
Protection:
Short Circuit Protection: The 5w GS approved power supply will recover automatically after fault removed
Over Current Protection: The 5w GS approved power supply will recover automatically after fault current removed
Over Voltage Protection: The 5w GS spproved power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
EMC Compliance:
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B
5W Series Related Charger Pictures:
Factory Pictures:
Safety Certificates:
We are working with:
All-Key Tourism Pictures:
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days after receiving the advance payment to All-Key account. |
| FOB Port | Shenzhen |
| Loading Info | Ocean/Air shipping or DHL,UPS,FedEX, TNT etc. |
| Packing Info | Packing material based on Carton (designed by All-Key): Pe bag+white box+carton |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
