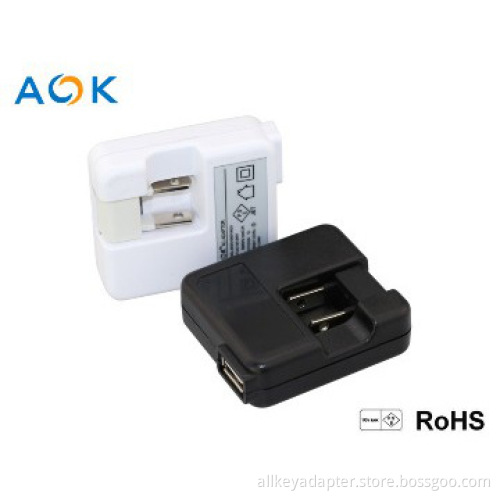

5v 1A PSE wall plug adapter
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Dimension(mm) | 66*24*31.5 |
|---|---|
| color | black /White |
| N.W/PCS | 65g |
| out put | 5V 1A |
| G.W/cartor | 11KG |
| Usage | Electronic product, Game Player, Laptop, Linear, Mobile Phone, Other, Power, Switching |
| Connect Type | Other |
| Zone Of Application | European Union |
| Output Type | DC |
Detail Description
5v 1A PSE wall plug adapter
OEM and ODM are welcomed
wall plug adapter key specifications:
Built-usb adapter From Manufacturer &Factory&Exporter
High quality, factory supply Certificated Power supply 5V 1A with US, EU,AUS, UK plug.Built-usb adapter enviroment protection for mobile phone MP3, Tablet
With PSE APPROVAL
High quality
Reliability:
Burn in: 100% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 240Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 30,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
wall plug adapter Protection:
Short Circuit Protection: The power supply will recover automatically after fault removed
Over Current Protection: The power supply will recover automatically after fault current removed
Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
wall plug adapter Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
Immunity:
Radiation: 61000-3-2
Electrostatic Discharge: 61000-4-2
Electromagnetic Field Radiation：61000-4-3
Instantaneous Discharging：61000-4-4
Surge：61000-4-5
Conducted Interference：61000-4-6
Voltage Interruption and Variation：61000-4-11
Charge EMC Compliance
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B
SAA Certificate
ISO 9001:2008
ISO 14001:2004
Additional Information
| Payment Terms | T/T, Paypal |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days after receiving the advance payment to All-Key account |
| FOB Port | Shenzhen |
| Loading Info | Ocean/Air shipping or DHL,UPS,FedEX, TNT etc. |
| Packing Info | Packing material based on Carton (designed by All-Key): Pe bag+white box+carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
