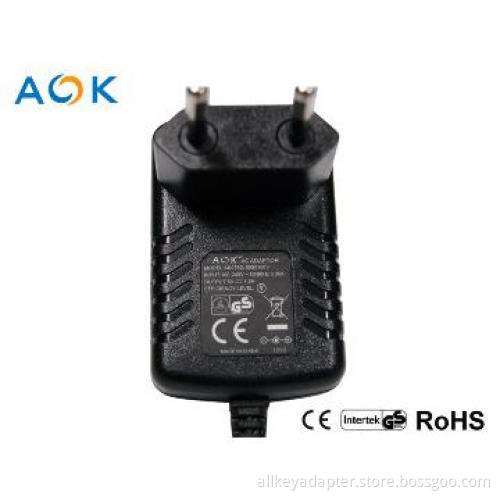

7.5W inline black China manufactrories adapter CB CE SAA PSE etc
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| OEM ODM | avaliable |
|---|---|
| color | black |
| input current | 0.35A |
| out put | 7.5 1A |
| Frenquency | 50-60Hz |
| Hole Digits | Other |
| Real Load | <1 |
| Rated Current | Other |
| Output Type | Multiple |
| Zone Of Application | Other |
Detail Description
OEM ODM are available
Key Specifications:
7.5W Power Adapter 7.5V 1A From Manufacturer &Factory&Exporter
High quality, factory supply Certificated Power supply 7.5V 1A with US, EU,AUS, UK plug. 7.5V 1A charger with CE,KC for mobile phone MP3, Tablet
With various Plug types
High quality
| MODEL NO. | OUTPUT(V) | OUTPUT(A) | TPUT(W) MAX |
| AK00G-XXXYYYWZ | 5.0-7.0 | 0.1-1.5 | 7.5W |
| AK00G-XXXYYYWZ | 7.5-8.9 | 0.1-1.0 | 7.5W |
| AK00G-XXXYYYWZ | 9.0-12.0 | 0.1-0.83 | 7.5W |
Reliability:
Burn in: 85% -95% full load, 40±5℃, 4 hours
Leakage Current: 0.25mA Max. at 254Vac
Voltage Withstand (Between Primary and Secondary): 3000Vac,60S, 5mA Max.
Insulation Resistance (Between Primary and Secondary): 20MΩ min at 500V DC
MTBF: over 50,000 hours @ 25 ℃ with full load according to MIL-HDBK-217F.
Protection:
Short Circuit Protection: The power supply will recover automatically after fault removed
Over Current Protection: The power supply will recover automatically after fault current removed
Over Voltage Protection: The power supply will be shutdown when output voltage exceeds rated voltage by 150%-180%, and recover automatically after fault removed.
Environmental Specifications:
Operating Temperature: 0º C to 40 º C at maximum load
Storage Temperature: -20 º C to 85 º C
Storage Relative Humidity: 5% to 95% non-condensing
Immunity:
Radiation: 61000-3-2
Electrostatic Discharge: 61000-4-2
Electromagnetic Field Radiation：61000-4-3
Instantaneous Discharging：61000-4-4
Surge：61000-4-5
Conducted Interference：61000-4-6
Voltage Interruption and Variation：61000-4-11
EMC Complianc
North American Market FCC: FCC Part 15 Class B
European Market EMC: EN55013/55022 Class B
Chinese Market: GB9254-2008/GB17625.1-2003/GB13837-2003/GB17625.1-2003
Australian Market C-TICK: CISPR13/22 Class B
5W Wall Plug-in Adapter Package
| N.W/pcs | Pcs/Carton | G.W/Carton | Dimension (mm) | White Box (mm) | |
| CCC UL PSE Certified Adapter | 67g | 100 | 8.6kg | 60*39*31 | L85*W49*H64 |
| VDE EK Certified Adapter |
73g | 100 | 9.2kg | 60*39*44 | L85*W49*H64 |
| BS Certified Adapter | 77g | 100 | 9.5kg | 60*49*34 | L85*W49*H64 |
| SAA Certified Adapter | 70g | 100 | 8.7kg | 60*41*35 |
L85*W49*H64 |
More picture
Certificates Obtained:
CB Report (Global): IEC60950-1/IEC60065/IEC61558-2-7
CCC Certificate (China): GB4943-2001/GB8898
GS Certificate(Europe): EN60950-1/EN60065/EN61558-2-7
CE Certificate(Europe): EN55022, 55024/55013,55020/55014-1,2
BS Certificate(Britain): BS EN60950-1/BS EN60065
cTUVus:(American ）UL60950-1/UL60065
SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065
KC Certificate(Korea): K60950-1/K60065
PSE Certificate(Japan): J60950-1/J60065
CE Certificates
CB Report
ETL Certificate
GS Certificate
BS Certificate
SAA Certificate
CCC Certificate
KC Certificate
PSE Certificate
ISO 9001:2008
ISO 14001:2004
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 1000 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | 20 working days after receiving the advance payment to All-Key account |
| FOB Port | Shenzhen |
| Loading Info | Ocean/Air shipping or DHL,UPS,FedEX, TNT etc. |
| Packing Info | Packing material based on Carton (designed by All-Key): Pe bag+white box+carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
