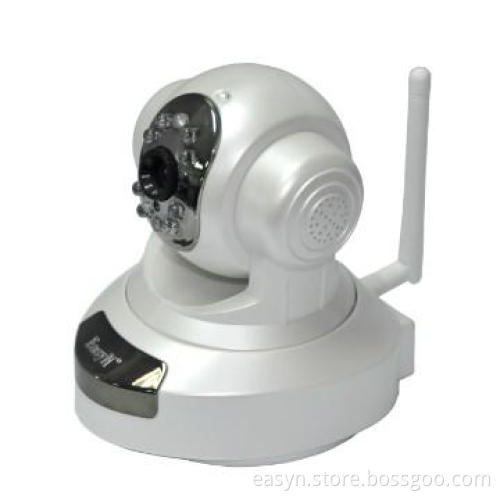

EasyN HD wireless ip camera
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Sensor | CMOS |
---|---|
Power | DC5V 2A |
Lens Standard: 3.6mm | Lens Standard: 3.6mm |
Nightvision | IR distance: 10m |
Temperature | -10~50 °C |
Style | Mini Camera |
Special Features | Other |
Type | IP Camera |
Image Sensor | CMOS |
Technology | Infrared, Pan, Tilt |
Detail Description
Features | System security | Supports three-level account, password, user multi-level authority management |
DDNS(free) | Built in free DDNS system,for example http://demo.easyn.hk,\'demo\' is serial code | |
Mobile Phone platform | Special mobile phone management software | |
Integrated Monitoring System | EasyN multi-view management software,no user limitation special integrated monitoring system,remote record | |
Superiority | Support PC monitoring, support most smart phone such as iphone, android, symbian, etc. | |
Local memory | Support up to 32G TF card memory( SD card is not included) | |
CPU | Operation system | Embedded Linux OS |
Video | Compression format | H.264 main profile level 3,dual stream |
Sensor | CMOS 1 megapixels | |
Frame rate | Main stream:1-25fps second stream:1-25fps | |
Resolution | main stream: 720P(1280*720) second stream: QVGA(320*240) | |
Video adjustment | Brightness, contrast, saturation. | |
Minimum illumination | 0.3 Lux/F1.2 | |
S/N ratio | >48DB (AGC off) | |
Shutter speed | PAL:1/50s- 1/100,000s NTSC:1/60s -1/100,000s auto | |
WB,BLC | Auto | |
Lens | Standard: 3.6mm | |
Nightvision | Filter switch | Built-in IR Cut,filter switch automatically, without color cast |
Nightvision | 9 Φ5 LED lights IR distance: 10m | |
Audio | Compression format | G.726/G.711 |
Input/Output | two-way audio,one channel linear(microphone with power supply) input /linear output | |
Output | Audio output | |
P/T | Motor | Built-in motor control |
Rotation angle | Horizontal: 270° vertical: 90° | |
Network | Network interface | 10Base-T/100Base-TX Ethernet slot |
Protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
Wireless | WIFI, 802.11 b/g/n | |
Online visitor | Support 10 visitors at the same time | |
IP mode | Dynamic IP address, static IP address, PPPOE | |
Others | Material | Plastic |
Use enviroment | Indoor use | |
Power | DC5V 2A | |
Temperature | -10~50 °C | |
Humidity | 95% RH | |
Size | Item size:118*105*120mm (L*W*H) | |
Packaging size: 170*170*170mm (L*W*H) | ||
Weight | G.W.: 290g (Note: for real products ) | |
Accessories | Power adapter,CD,manual,warranty card,bracket,srews | |
Alarm | Motion detection regions | support 4 Motion detection regions |
Alarm action | Support Email photo,FTP photo,FTP record ,photo and record can be written into SD card | |
System | System requirement | Microsoft Win98 SE/ME/2000/XP,Vista IE5.0, NET4.5,firefox,chrome |
Certification | Certificate | ISO FCC CE SASO RoHS |
IE View
Certification
Our storage
Frequently Asked Questions:
Question: Why can’t I find the IP camera using the finder (searching tool)?
Answer:
1. Please check whether the IP camera and searching tool are located in the same LAN network;
2. Please check the connection of the internet cable and power.[Under normal circumstances, power light (yellow) is constantly on, network light (green) constantly flickers]
3. The Firewall installed in the computer may have blocked the IP camera.
Question: What is the max no. of areas for motion detection of the F series?
Answer:
F series support 1 motion detection area, which is a whole image.
Question: Where can we download the cell phone visiting program?
Answer:
Please visit http://f.easyn.com or scan the QR code on the product to download the corrected APP.
Question: How can I set my IP camera in the same network segment as my PC in LAN?
Answer:
First you can use searching tool to find out the camera, then click the auto set button.
Question: Why is the image from the IP camera’s image too white or dark?
Answer:
Please try to modify the camera mode at the IP caera interface.
Warranty:
EasyN provides 12 months warranty service on your product. your warranty card is an important document. you will need to present this warranty card to benefit from our warranty service.
Terms & conditions:
a) Free-of -Charge maintenance period of the product is 12 months. During this time, we can repair it for free (Damages not caused by misuse or vandalism). For reparation after guarantee period, a maintenance fee will be charged.
b) During the warranty period, for breakdown caused by misuse or other reasons that are out of the range of warranty, users can repair the products by showing this card. We will only charge for components.
c) When the products need maintenance, please hand in the warranty card together with the products to the manufacture or local distributor.
d) Opening the inside of the products and tearing up the sealing label privately is out of the warranty range.
e) We do not repair the damaged item after it has been modified or added other functions.
Under the following circumstances, the maintenance will be charged:
1. Period check, maintenance or change components due to normal attrition.
2. Damages due to crash, extrusion, artificial flooding, moisture or other personal reasons.
3. Damages due to floods, fire, lightning strike and other natural calamities or force majored incidents factors
4. Repaired item by non-authorized repair centers.
Additional Information
Payment Terms | L/C, T/T, Western Union |
---|---|
Minimum Order | 2 pieces |
Lead Time / Delivery Time | 8 Day(s) |
Sample Available | YES |
Delivery Details | 5-8 work days |
FOB Port | Shenzhen |
Packing Info | Product: 127x111x100 Color box: 170x170x170 Weight: 658G Carton:540x360x360 12pcs per carton |
Target Market(s) | Africa(except Middle East), Eastern Europe, Japan & Korea, Mainland China, Middle East, North America, Northern Europe, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
