LED Module Excellent Quality, High Brightness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Voltage	DC12V/DC24V
Waterproof Rating	IP68
LED Type	SMD5050
LED Quantity	4leds
Power	1.44W
Life	≥50，000hours
Temperature	℃
IP	IP68
Color Mode	Monochrome
Voltage	12V
Color	Full-color Single Point of Control
Power	0.72W

Detail Description

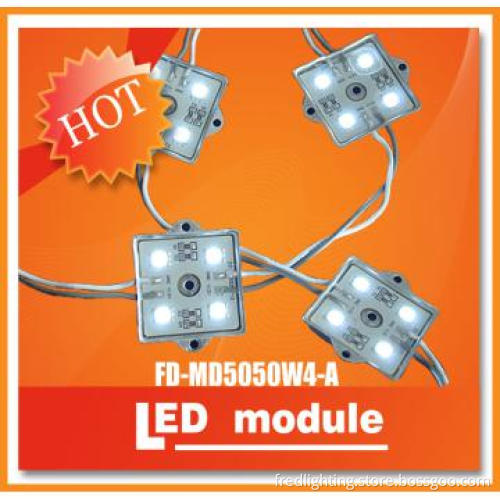

LED Module Excellent Quality, High Brightness waterproof IP68
FD-MD5050W4-A

LED module Description:

1   High brightness 4 pcs SMD5050
2   Red/Green/Blue/Yellow/White and any other single color available
3   Waterproof,IP68
4  1.44W per pcs
5   Certification: CE and RoHs

led module Features:

High brightness,adopting super bright SMD5050.
It is easy to install with 3M sticky back tape on the backside
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Pure white, Cool White or any other single color.
Working Voltage:12VDC
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 100% relative humidity

Parameter:

led module	Waterproof Rating	Type	Quantity	Power	Beam Angle	Work Voltage	Work Temperature	Emitting Color	Parkage
FD-MD5050W4-A	IP68	SMD5050	4leds	1.44W	120°	12VDC	72lm	Red/Green/Blue/Yellow/White	Bubble bag and carton

Dimension of FD-MD5050W4-A:

Installation:

led module Application:

Channel letter light backlight.
outdoor sign backlight.
outdoor advertisement sign backlight.
advertisement light box.
use for bar, hotel, restaurants.

Additional Information

Payment Terms	T/T, Western Union
Minimum Order	100
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	3-15days after confirmed order
FOB Port	Shenzhen
Loading Info	All of panel light can be delivered by express or air or ocean freight.
Packing Info	Bubble bag and carton
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
