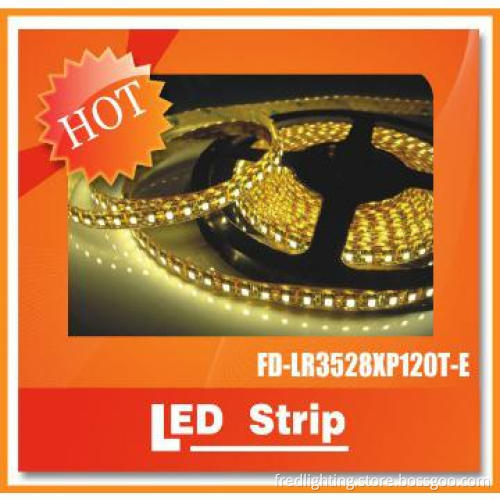

LED strip SMD 3528 120leds/m 9.6W/m 12VDC IP65

Description:

1 Red/Green/Blue/Yellow/White available
2 Waterproof IP65
3 120leds per meter,9.6W per meter
4 5 meters per reel,packed in anti-static bag and then in carton box
5 Certificate: CE,RoHs

Features:

Available in lengths from 0.5meter to 5meters.
It can be cut every 5 centimeters.
It is easy to install with 3M sticky back tape on the backside.
Standard length is 5 meters per reel with 10-15cm electric cable wire.
PCB Material: Flexible copper,PCB color is white,golden or black is available.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Commercial White, Pure White.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 degree.
Ambient Humidity: 0% ~ 95% relative humidity.


Parameter :

Part NO.	IP Rate	Type	Quantity	Power	Beam Angle	Work Voltage	Work Temperature	Emitting Color	Parkage
FD-LR3528XP120T-E	IP65	SMD3528	120leds/m	9.6W/m	120°	12VDC	-40-50℃	R/G/B/Y/W	5m/reel

Dimension :


Connection :

Installation :


Application :

Flex Light Strip can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.


Various kinds of Flex Light Strip are supply, such as SMD3528, SMD4014 and SMD5050 Light Strip, with different quantity of LED and different IP Rate. If interested, please feel free to contact us.
