SMD5050 Singal Color Waterproof LED strip ribbon  CE RoHS Achieved
  • SMD5050 Singal Color Waterproof LED strip ribbon  CE RoHS Achieved
SMD5050 Singal Color Waterproof LED strip ribbon  CE RoHS Achieved

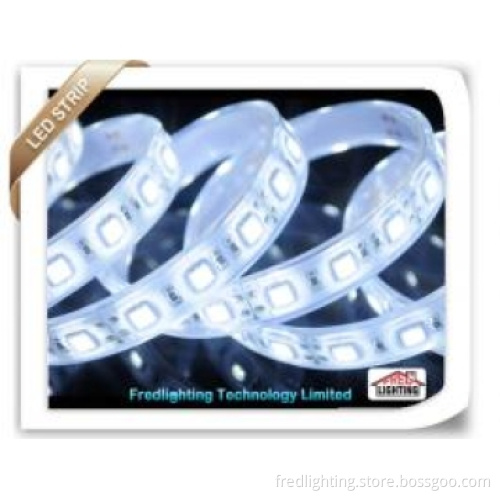

SMD5050 Singal Color Waterproof LED strip ribbon CE RoHS Achieved

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Voltage 12VDC
Waterproof Rating IP67
LED Type LED Type
LED Quantity 60leds/meter
Power 14.4W/meter
Voltage 12V
Colour White
Light Source LED

Detail Description

FD-LR5050XP60T-S

 Description:

1   Waterproof, IP67
2   Red/Green/Blue/Yellow/White available
3  60leds per meter,14.4W per meter
4   5 meters per reel,packed in anti-static bag and then in carton box
5   Certificate: CE and RoHs



Features:


Available in lengths from 0.5meter to 5meters.
It can be cut every 5 centimeters.
It is easy to install with screw in mounting clips.
Standard length is 5 meters per reel with 10-15cm electric cable wire.
PCB Material: Flexible copper,PCB color is white,golden or blank is available.
Life span: 50,000 hours.
Emitting color: Red, Green, Blue, Yellow, Warm white, Commercial White, Pure White.
Working Voltage:DC 12VDC(24VDC is available).
Working Temperature: -40 ~ 50 ℃.
Ambient Humidity: 0% ~ 95% relative humidity.




Parameter:



Part NO.  Waterproof  Rating Type  Quantity Power Beam Angle  Work Voltage Work
Temperature
Emitting Color   Parkage
FD-LR5050XP60T-S IP67  SMD5050 60leds/meter 14.4W/meter 120° 12VDC -40-50℃ Red/Green/Blue/Yellow/White 5 meters/reel



Dimension of FD-LR5050XP60T-S:



Connection Graph:

Installation:

Package:

Application:


light can be applied for wide range of areas, indoor and outdoor. It can be sticked onto the wall and other objects, or twined
round pillar or other objects, decorating door, hall, corridor, cabinet, sculpture, plants, etc.

Additional Information

Payment Terms T/T, L/C, Others
Minimum Order 10
Lead Time / Delivery Time 15 Day(s)
Sample Available NO
Delivery Details 3-15days after confirmed order
FOB Port Shenzhen
Target Market(s) Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
