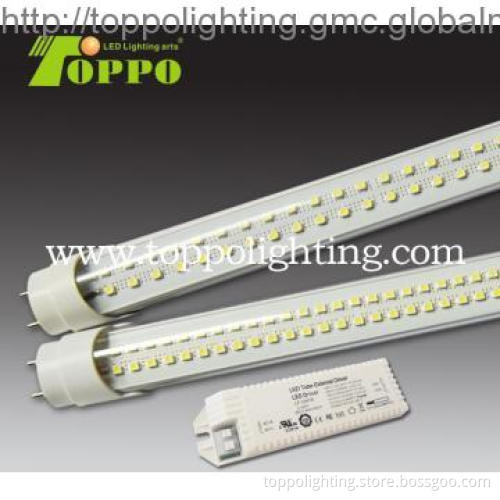

1.2M 20W External Driver LED Tube
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Luminous Flux | 2200 |
|---|---|
| Material | AL housing+Clear/striped/frosted cover |
| LED Qty | 360 |
| Life | 30K~50K hours |
| Package | Yes |
| Length | 120cm |
| Power | 20W |
Detail Description
1.2M 20W External Driver LED Tube
Product Name |
T8-20W with external driver |
Certification |
TUV, ETL, CE, ROHS |
Materials |
AL Housing+transparent/striped/frosted cover available |
Dimension |
1200*26mm(4 feet) |
LED Qty(pcs) |
360 |
Input voltage |
AC or DC 90-277V, 16mA constant |
Power consumption |
20W |
Luminous flux(LM) |
2150-2300-2450 |
Led Source |
0.06W high LM SMD Led as light source |
Power Factor |
>0.95 |
Color Temperature |
Warm white: 3000-4500K, Pure white: 4500-5500K, Cold white: >6000K |
Luminous Efficacy(LM/W) |
typ.110 |
Compare conventional |
45W |
Life time |
30,000-50,000 hours |
Packing |
1255*225*210mm 25pcs/carton |
external driverT8 LED tube -1.2M 20Wproduct features:
External Driver:
1:Same dimension as the normal ballast(Easy replacement)
2: Universal input voltage: AC90-277V
3:Dimmable function( Patent design)
4:TUV/UL/CUL/FCC approval
5: Constant DC output voltage
LED Tube:
1:patent designed: Holes on PCB board for better heat releasing.
2:patent designed: turnable end cap with clip for easy replacement
3: Constant DC working voltage during operation
4: Pass the 4000V high voltage testing
5: Less than DC10V voltage leakage during operating.
6. Introduced YAMAHA SMT auto machine for production to insure the quality of the LED light.
7. No UV-light to avoid the insects being around;
Model available:
T8/T10
600mm 8W 750-850-950LM
600mm 10W 950-1100-1250LM
900mm 11W 1050-1200-1350LM
1200mm 15W 1600-1750-1850LM
1200mm 18W 1800-2000-2100LM
1200 mm 20W 2150-2300-2450LM
1500 mm 18W 1750-2000-2150 LM
1500 mm 22W 2250-2400-2550 LM
1500mm 30W 2900-3100-3300LM
1800mm 32W 2900-3100-3300LM
2400mm 35W 3500-3700-3900LM
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10 pieces |
| Sample Available | YES |
| FOB Port | Shenzhen |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East, Mainland China |
