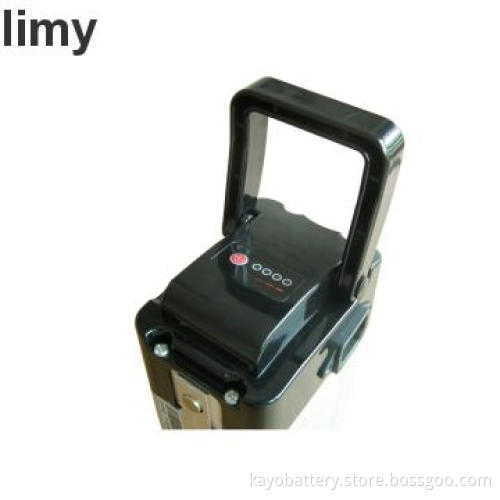

Lithuim Battery Pack 36V, Ebike Battery

36V 10Ah lithium battery pack, electric bike battery pack

1. General: Battery with safety circuit and plastic grid

Cell: KY-3610-A

Dimension: 76x110x389mm (WidthxLengthxHeight)

Weight: approx. 3.95Kg

2. Electrical Specification:

Nominal Voltage: 36V

Rated Capacity: 10,000 mAh min, 10,000 mAh typical

Watt-hour rating:360Wh

Charging Method: Constant Current + Constant Voltage

Max. Charge Voltage [V]:29.4 (+/- 50mV)

Max. Continuous Charge Current: 10,000 mA

Rec. Charge cut off: by current 8mA or timer 6.0h

Max. Continuous Discharge Current: 20,000 mA

Rec. Discharge cut off: 21.0V

Exp. Cycle Life: 300 cycles above 70% of initial cap.(1C @ 20 degree centigrade)

3. Ambient Conditions

Temperature Range - Charge: 0 to +45 degree centigrade

                                - Discharge: -10 to +60 degree centigrade

                                - Charge Retention/Storage [%]: 1 year at -20 to +25 degree centigrade 3 month at -20 to +40 degree centigrade

                                Humidity: 65+/- 20% RH

4. Environmental and Safety

The cell is approved according UL 1642. This battery meets the requirements of Battery Directives and the battery parts are RoHS-Compliant.

Compatibility: lithium battery made for YAMAHA ebike, lithium battery made for GIANT ebike, flithium battery made for YAMAHA ebike,battery made for GIANT ebike, battery made for AUCMA ebike, battery made for ROYALSTAR ebike, battery made for TOSHIBA ebike, battery made for LIMA ebike, battery made for LBH ebike, battery made for XINRI ebike, battery made for WOLF ebike, battery made for EMMELLE ebike, battery made for SEGWAY ebike, battery made for BIDEWEN ebike, battery made for YADEA ebike, battery made for EVERMASTER ebike, battery made for INCALGU ebike, battery made for HONGERDA ebike, battery made for ACTIVE ebike, battery made for CITIFY ebike, battery made for NK ebike, battery made for DARK HORSE ebike etc.
