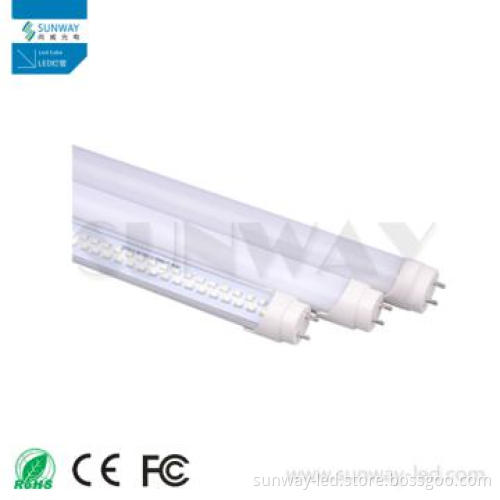

High Lumen Output T8 bridgelux Plafonnier LED 18W
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Life | >50000hours |
|---|---|
| Package | Yes |
| Tube Diameter | T8 |
| Color Tones | Warm Color |
| Lamp Base | G13 |
| Power | 18w |
| Illuminant | SMD |
| Length | 150cm |
| Light Source Chip | CREE |
| Voltage | 220V |
Detail Description
High Lumen Output T8 bridgelux Plafonnier LED 18W
Specification
| Item | SW-T8L150-S18W276 | SW-T8L150-S20W288 | SW-T8L150-S22W432 | SW-T8L150-S25W360 | SW-T8L150-S30W432 | |
| Electrical parameter | LED chip | 276pcs(SMD3528) | 288pcs(SMD3528) | 432pcs(SMD3528) | 360pcs(SMD3528) | 432pcs(SMD3528) |
| Input voltage(V) | 85-265Vac | 85-265Vac | 85-265Vac | 85-265Vac | 85-265Vac | |
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | |
| Rated Power | 18W | 20W | 22W | 25W | 30W | |
| Power factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | |
| LED power | 18W | 20W | 22W | 25W | 30W | |
| Light parameter | luminous efficiency | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W |
| Lumens | 1800lm | 2000lm | 2200lm | 2500lm | 3000lm | |
| Color temperature | 2700-7000k | 2700-7000k | 2700-7000k | 2700-7000k | 2700-7000k | |
| CRI | 70-80Ra | 70-80Ra | 70-80Ra | 70-80Ra | 70-80Ra | |
| Beam Angle | 120° | 120° | 120° | 120° | 120° | |
| Comprehensive parameter | Material | Aluminium+PC Cover | Aluminium+PC Cover | Aluminium+PC Cover | Aluminium+PC Cover | Aluminium+PC Cover |
| PC cover options: | Crystal, Frosty, Striped | Crystal, Frosty, Striped | Crystal, Frosty, Striped | Crystal, Frosty, Striped | Crystal, Frosty, Striped | |
| Working temperature | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | -30°C ~ 55°C | |
| Life span | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours | |
| Physical parameter | Size | 1500*26mm | 1500*26mm | 1500*26mm | 1500*26mm | 1500*26mm |
Advantages of this lights
1 .Removable ends allow the LED driver board to be separated from the LED array for easy repair or maintenance.
2. Added Vents for improved heat dissipation and increasing the life of LED
3. Rotatable end caps adjust illumination angle up to 180 degrees
4. Improved illumination Quality: New diffusion LEDs allows up to 90% light transmission whilst reducing glare
Packing details:
The rigid long shape paper case with some soft thing in it to protect the products or pack it as your special requirements!
Diversified Options
Special color available to meet different requirements.
LED chip is from America.
Different colors for choice:warm white(2800-3500K),natural white(4000-4800K),cool white(5000-6500K)
Different power for choice
Any questions,don\'t hesitate to contanct us.
Additional Information
| Payment Terms | L/C, T/T, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1PCS |
| Lead Time / Delivery Time | 8 Day(s) |
| Sample Available | YES |
| Delivery Details | After receive the 100% T/T payment |
| FOB Port | Shenzhen |
| Loading Info | Shipped by express or air or sea as negoiated |
| Packing Info | The rigid long shape paper case with some soft thing in it to protect the products or pack it as your special requirements! |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
