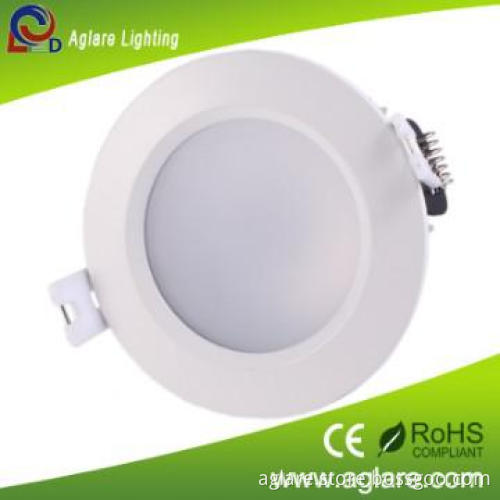

2013 hot sale LED Downlight ,cob led recessed LED Ceiling downligh

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Output power	9W
LED type	high power 1W
Housing material	aluminum alloy+PC
Beam Angle	120º
IP	IP44
Material	Aluminum, PC
Application	Bedroom, Car Park, Church, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, Shopping Mall, Sitting Room
Finishing Color	White
Voltage	90-260V
Light Source	LED Lamp

Detail Description

The advantage of LED light:

1. Green products, no harm to human beings.

2. No heavy metal material (such as mercury, cadmium), friendly to the environment.

3. Good heat output, 90% high efficiency.

4. High luminous efficiency, 30,000 hours long lifespan.

5. Solid light source. Easy for transportation.

6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.

Feature

YJ-DLC116-PW9X1

1, Output power:9W

2, LED type:high power 1W

3, LED quantity:9 PCS

4, Luminous intensity:540.21LM

5, Beam angle :120°

6, Maximum size 116*61MM

7, Net weight:270g

8, Housing material: aluminum alloy+PMMA

9, Lifespan:>30000H

Product photoelectric parameters :

Type	input voltage	PF	Output wattage	Output Luminous Flux	beam angle	product size (MM)	Recommended opening size (MM)	Net weight(including driver)
YJ-DLC99-PW3X1	AC90-260V	0.7	3W	174.38LM	120°	99*57	79	182g
YJ-DLC108-PW7X1	AC90-260V	0.9	7W	420.04LM	120°	108*60	97	240g
YJ-DLC116-PW9X1	AC90-260V	0.9	9W	540.21LM	120°	116*61	101	270g
YJ-DLC139-PW12X1	AC90-260V	0.9	12W	720.19LM	120°	139*63	120	397g

Colors :

YJ-DLC116-PR9X1	R	wavelength :620-635nm
YJ-DLC116-PG9X1	G	wavelength :515-530nm
YJ-DLC116-PB9X1	B	wavelength :460-475nm
YJ-DLC116-PY9X1	Y	wavelength :585-595nm
YJ-DLC116-PWW9X1	WW	Color Temperature :3000-3500k

The product installation instructions:

Installation Notes:

1. Cut off the power supply before installation.

2. Take related electric shock protection during installation.

3. Installation should be made under above mentioned right guidance.

4. Avoid child touch.

5. Contact supplier timely if you installed products under right guidance, but lamp can\'t be lit up nor has stroboscopic phenomenon.

Package Information:

Packages may be adjusted according to different order quantities.

Net (g)	Gross (kg)	Carton1 Size (CM)	Carton2 Size (CM)	Q’ty/Carton 1

Net (g)

Gross (kg)

Carton1 Size

(CM)

Carton2 Size

(CM)

Q’ty/Carton 1

270	18.5	13.0137.1	525228.4	64

270

18.5

13.0*13*7.1

52*52*28.4

Application pictures

About us:

After-sales Service

All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it’s not guaranteed. To the problem within promised time, “Aglare” will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customers

Certificate ISO9001

HK fair in April

Additional Information

Payment Terms	T/T, Western Union, Paypal
Minimum Order	100
Lead Time / Delivery Time	15 Day(s)
Sample Available	YES
Delivery Details	5-15 working days after we confirm payment
FOB Port	Shenzhen
Loading Info	as per your request
Packing Info	Common industrial packaging,Inner box and carton
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
