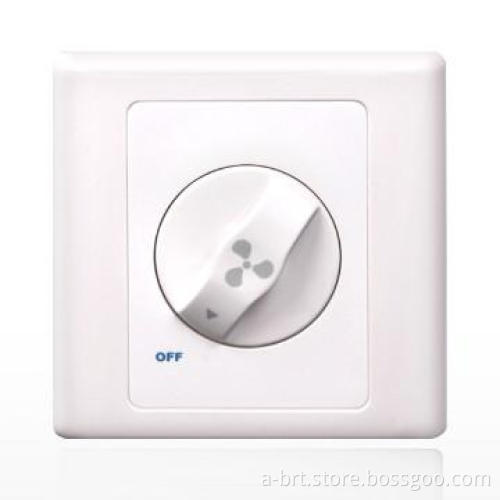

Rotary 600 Watt AC Motor Speed Wall Switch

Features:

BRT-702 is a Stepless Speed Control Switch, it control ON/OFF and the Speed of the Motor.  Operates on a 2 wire system, and fits in a standard wall box；Good for all kinds of Fan Motor, Electronic Motor and Water Pump.
l Max Wattage: 600W;
l With Temperature Override Protection Function;
l For different motors, the switch can set the Motor’s Min Speed by adjust the potentiometer;
l Rotating the knob, the motor will reach the Max speed, Rotating the Knob clockwise, the speed will turn slow gradually;
l Wallplate uses flame resistance ABS-V0 material for safety;
l Classical 86 series design and easy installation.

 Specifications:

Voltage	220～240V(50Hz/60Hz)	Operating temperature	0℃～55℃
Motor load	600W(maximum)	Relative humidity	Non-condensing 20-90%
Installation hole spacing	60mm	Matching wall box	75*75*50mm
Dimension	86*86*43mm	Weight	84g

One Year Warranty Policy:

If within one (1) year from the date of purchase, this product fails due to a defect in material, Asia Bright will repair it, at its sole option, free of charge. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product.
