LCD Display RF Ceiling Fan Remote Control Kit

Features:

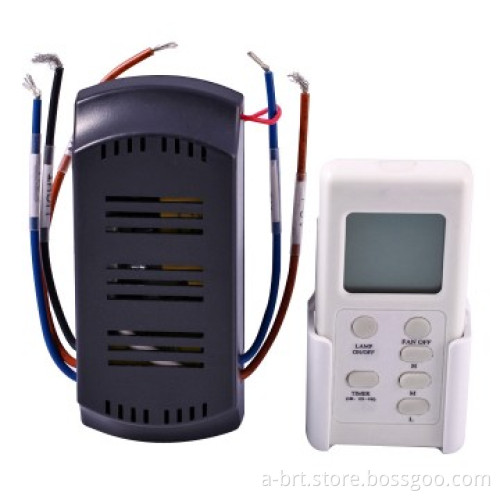

This unit includes a rectangular receiver and a LCD display transmitter (remote control). Transmitter and receiver use radio frequency technology to communicate and work at 433.92MHz or 315MHz. The receiver fits well in the fan\'s canopy, installs horizontally above the ball attachment. It is designed for fans that vary their speeds by changing the capacitance in the circuit. It will work on almost all fans with lights in the market.
lFan Speed: High/Medium/Low;
lCapacitance for fan speed: 4μF for Medium speed, 2μF for Low speed;
lFan Timer: 1h, 2h, 4h and 8h (custom settings available)
lLight function: On/Off
lBoth the transmitter and receiver have 4 dip switches to avoid control interference from different remote controls. They must have the exactly same dip switch setting to work together.
lBattery for remote control: One 23A 12 Volts battery(not included)

Specifications:


Voltage	220～240V(50Hz/60Hz)	Operating temperature	0℃～55℃
Light load	600W(maximum)	Relative humidity	Non-condensing 20-90%
Motor load	100W(maximum)	Working distance	RF, ≥10m
Receiver dimension	120*53*23mm	Receiver weight	108g
Transmitter dimension	103*47*13mm	Transmitter weight	45g
