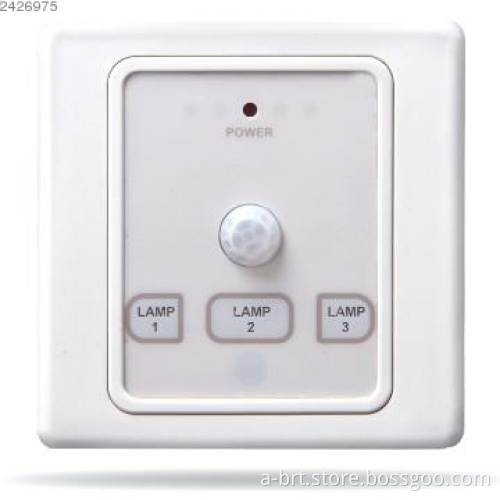

Auto off Wall Light Switch with 3 Separate Loads

Features:

BRT-308C is a touch screen occupancy sensor switch which uses passive infrared technology to achieve auto off function. The user can manually touch the buttons to turn on 3 separate loads. When the room is unoccupied for 15 minutes to 30 minutes, it will turn off all the loads automatically. In this way, it can avoid electricity wasting. It’s widely used in meeting room, classroom, offices etc.

l Technology: Passive Infrared;
l Operates on a 2 wire system( it does not require a neutral wire), and fits in a standard wall box;
l Manual-ON/Auto-OFF selectable operation;
l LED NightLight offers \"Guide Light\" functionality;
l Time lag: 15 minutes to 30 minutes;
l Controls three separate loads, and good for all types of lights and other loads;
l Wallplate uses flame resistance ABS-V0 material for safety;
l Classical 86 series design and easy installation.

 Specifications:

Voltage	220～240V(50Hz/60Hz)	Operating temperature	0℃～30℃
Light Load	3*1000W	Relative humidity	Non-condensing 20-90%
		Working distance	5-7m
Installation hole spacing	60mm	Matching  wall box	75*75*50mm
Dimension	86*86*23mm	Weight	95g

One Year Warranty Policy:
If within one (1) year from the date of purchase, this product fails due to a defect in material, Asia Bright will repair it, at its sole option, free of charge. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product.
