Automatic soldering robot S+3030-PBT-4-100 /4 axis
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Type | Soldering Machine |
|---|---|
| Model Number | S+3030-PBT-4-100 |
| Function | Automatic soldering |
| Usage | soldering |
| Power | 300W |
| Type | Programming Input Type |
Detail Description

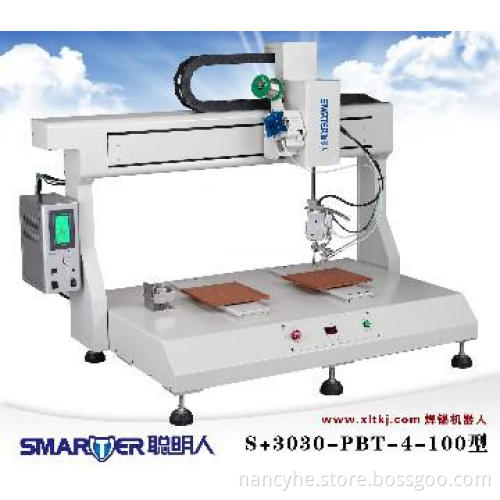

S+3030-PBT-4-100 Desktop Soldering Robot
Specifications:
1.Adopt color LCD display, menu information abundant.
2..With cutting tin function, reduced the detonation tin phenomenon greatly .
3..With double welding head model, which can improve the solder efficiency.(note: not all products can use double welding head
Axis dynamic range:X axis 300mm ; Y axis 300mm ; Z axis 100mm;R axis 340 degreeAxis moving maximum speed:X axis 600mm/sec;Y axis 600mm/sec; Z axis 300mm/sec;R axis 600 degree/sec
Control method:PLC closed-loop control
Driving motor:Stepping
Power supply: 220V
Max consumption Power:300W
Operation:Teaching programming
Repeated precision :±0.02mm
Storage data (welding spot): File data 300 group/625 welding spot
Temperature range:0-500°C
Tin wire range: Φ0.3~1.6mm
maximum bearing weight of Y axis:6Kg
Applicable workpiece: plane, linear,Arc, 3D
Additional Information
| Payment Terms | T/T, Western Union |
|---|---|
| Minimum Order | 1 unit |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | NO |
| Delivery Details | Within 3 days after getting the payment |
| FOB Port | Shenzhen |
| Loading Info | FOB/ Express/ air |
| Packing Info | Carton packing4 units/ carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
