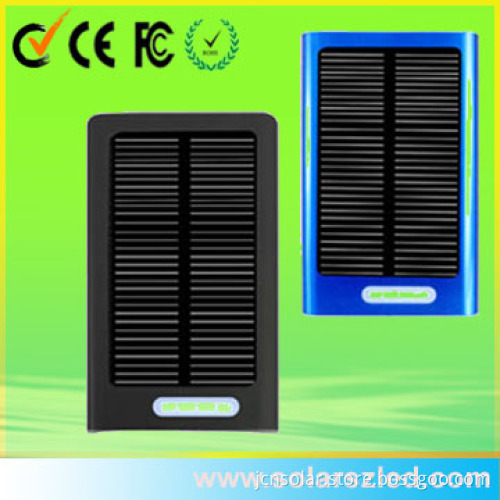

Solar Cell Battery Charger for Smart Phone

No

Item

Parameters

1

Battery

Li-polymer

2

Total power/capacity for the battery

1950mAH

3

USB output voltage

5V

4

USB output current

0.5A(Constan), 0.8 A(Max.)

5

USB Output over-current protection current

1.4~3.0 A

6

Self-consuming current

<100uA

7

Charging time

3-4 Hours by USB,12-15 hours by sunshine

8

Charging instruction

Lights flashing indicates charging, all lights stay bright indicates charged full

9

Power adapter charging voltage/current

5V/0.8A

10

Solar plate charging Voltage/current

Output voltage/current:6~7V/ >100mA

11

Car charger,USB charging voltage/current

5~5.5V/800MA

12

Capacity indication

4 blue LED lights indicate the capacity

13

Battery overcharge protection voltage

4.35V±0.05V /cell

14

Battery overdischarge protection voltage

3.1V±0.05V/cell

15

Temperature protection

70°C

16

Meas

108mmx61mmx14mm

17

Weight

200g

18

operating temperature range

Charge:0~40°C, discharge:-10~50°C

19

Storage Temperature Range

1.-20~20°C(1 year)2. -20~45°C(3 months)3.-20~60°C(1 month)

20

Meas for color box

145mmx91mmx40mm

Portable ( 0.2kg ) ,fashion,safe

Charging voltage range:5~5.5V

Charging time: 3~4 hours by computer

Four types of charging : a.Travel charge  b. Charge in the car  c.charged by USB  d.solar plate charger

LED charging indication:Lights flashing indicates charging,All lights stay bright indicates charged full

output current: 200 ~ 800MA

Capacity indication: 4 blue LED lights indicate the capacity,at this time the switch shows blue.

Output: 5V-0.8Ahr

With the low power indication function

With multiple protection function, including the battery overcharge, over-discharge, overload protection, short circuit protection,and temperature

Low self-consuming current, can keep for half a year

Cycle lifetime: After using 300~500 times, the capacity will be reduced to 60% of its original levels.
