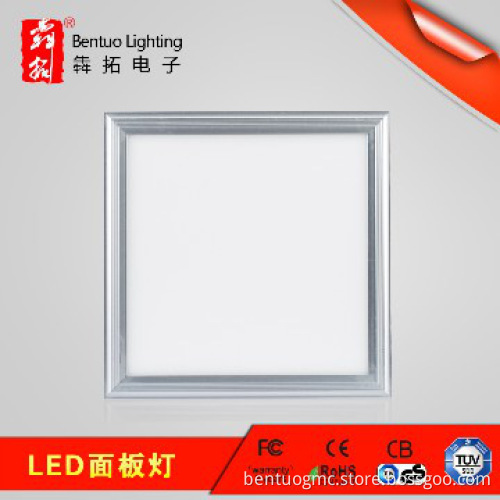

New 2x2 36w Panel light 600x600 LED Panel light

New 2x2 36w Panel light 600x600 LED Panel light

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

LED chip	Samsung
Power factory	>0.95
Certifications	TUV(CB/GS/EMC)/CE/FCC/PSE/ISO9001:2008
Delivery time	3-15days
Power	36W
Life (Hours)	50,000hours
Voltage	110-220V
Material	Acrylic, Aluminum, PMMA, Plastic
Light Source	LED
Application	Bedroom, Cinema, Gallery, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room

Detail Description

New 2x2 36w LED Panel 600x600 LED Panel light

Description of LED Panel

Product	New 2x2 36w LED Panel 600x600 LED Panel
Size	595x595x11mm
Power	36w
Luminous Flux	3200lm
LED Quantity	120pcs SMD5630
Input Voltage	AC85-265V
Color Temperature	3500k, 4500k, 6500k

Basic Specification

1.Application: Airport,TV station,Hospital,Office,Subway,School
2.Color: WW/NW/PW/CW
3.Certificate:TUV(CB, RoHS, PSE, FCC)UL
4.LED Source: SMD5630
5.Input Voltage:DC100-240 V
6.Light Source:LED
7.Material: Aluminum. PMMA,

Detail Description

Basic Info.:
Power: 36W
Size: 600*600*11mm,
LED Type: Lumen max SMD5630
Lumen Output: 3200LM(36W)
Beam Angle: 110 degree
Power Factor: full load >0.9
CRI: >80 Ra
Color Temperature: WW3000~6500K, NW4000-4500K,CW6000-6500K
Input Voltage: AC100~240V
Working Temperature:-10C~ 40C
Working Humidity >95%
Storage Temperature -35C - 55C
Storage Humidity >95%
IP Rating: IP20
Dimmerable Function: DMX, PWM, 0-10V, DALI
Installation Way: lift on lift-off ,embedded or ceiling mounted type

Customizable Survice for LED Panel

Optional sizes for series LED Panel lights,

600*600*11 mm, 600*300*11 mm, 1200*600*11 mm, 1200*300*11 mm, 300*300*11 mm

Installations,

Surface Mounted, Recessed and suspended installing.

To ensure them to be \"PERFECT\", our attention is still paid to testing the finished products. In addition, we can, if needed, sign a written Quality Commitment for every piece of our products. In this way, you can dispel your doubts on the quality of our products.

Technical Parameters:

LED panel second generation product features

NUMBERITEMDESCRIPTION 01Input voltageAC 100~240V02CRI》8003Power18W/36W04luminous flux18W （1400-1600K）36W（2700-2900K）05ColorWW、NW，CW06Color temperature3000~3500k(Warm White)4000~4500k(Natural White)6000-6500K(Cold White)07Life time>50,000 Hours08Working temp.\'-10°C~40°C09IP ratingIP2010LED quantity18W(60 pcs)36W(120 pcs)11CertificatesCE . RoHS,CB,FCC,UL ,TUV12Size595X595X12mm13Lighting model36W(2 side)14LED luminous efficiency85lm/w

Available installation for the LED panel light:

Packing of our LED panel light:

FAQ:

Q: Nearly all LED panel are the same exterior,how to tell quality?

A: Price and exterior.

Though LED lighting products are with same or similar exterior,due to raw material cost difference is big,poor quality are all poor frame exterior with poor heat dissipation.So prices are also low.

Besides,the driver exterior is also low-end with poor IC,MOS and capacitances.

Q:Does LED panel really have 50,000 hours lifespan?

A:50,000 or longer lifespan is only theroy from lab test.But due to working enviroments are different from in lab,actual lifespan is only <=30,000hours.

Q:For same power,why different suppliers with different brightness?

A:Different chips,or same chip but different brightness version.The brightness will be different.But for same chip and same brightness version,the brightness will be slight difference.But please make clear the brightness difference between LEDs and lamp fixture.

For example,600*600 LED panel light,the LEDs initial brightness is around 3600lm.But the true lamp fixture brightness will lose 30%,then will be around 2500lm.But some suppliers write LEDs brightness in datasheet to attract clients.Please be careful.

Q:What is CRI?

A:CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.

Q:What is PF and efficiency?

A:PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.

Q:Is there cheap shipping cost to import to our country?

A:For small order,express will be best.And for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q:Can we get support if we have our own market position?

A:Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

For any further information,please feel free to contact,we will send you PDF document to show full issues you care on LED business.

We are ready, and you?

Additional Information

Payment Terms	T/T
Minimum Order	50
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	Sample orders:3-5daysBulk order(1000pcs or above):10-15days
FOB Port	Yantian
Loading Info	Shipping transportation
Packing Info	EPE liner, carton cartoon
Target Market(s)	North America, Southeast Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Western & Southern Europe, Northern Europe, Central & Southern Asia
