Electronic Potting Compound Silicone Rubber,silicone rubber compound s

Typical Application of Electronic Potting Compound Silicone Rubber:

Electronic Potting Compound Silicone Rubber is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.

Features of Electronic Potting Compound Silicone Rubber:

1.Room temperature vulcanize, and easy to operate;
2.Maintain flexibility at a wide temperature range, and excellent insulation performance;
3.Waterproofing, moisture-proof, mouldproof, dustproof, and fixed components;
4.Resistance to Chemical dielectric, anti-yellowing, resistance to climate ageing.

Description of Electronic Potting Compound Silicone Rubber:

Electronic Potting Compound Silicone Rubber is a newly insulating material silicon of silicon compounds.
It cures without heat, corrosion and just with little shrinkage. It can be applied to the sealing and pouring of various electronic components, and then forming insulation system.

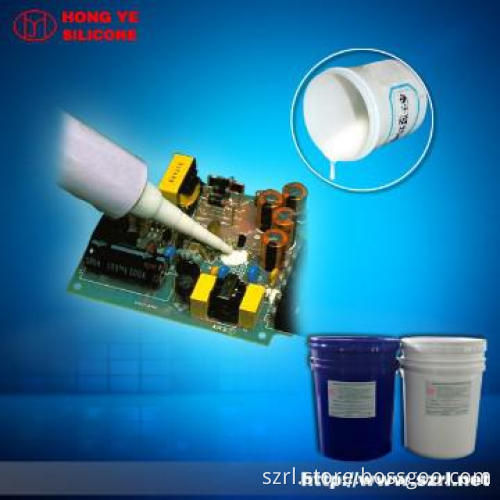

Picture show of Electronic Potting Compound Silicone Rubber:

Technical Parameters of Electronic Potting Compound Silicone Rubber:

(Pls note: all data of this product above in 25 °C with 55% humidity conditions. We don’t guarantee a same data if testing under different conditions, or when data was regenerated)

Operation of Electronic Potting Compound Silicone Rubber:

1.Put part A and part B in separate container with equal dosage and stir evenly when mixing the two parts together.
2. Put the mixture into the vacuum machine under 0.08 MPa for 5 minutes.
3. The temperature influences the curing time of electronic potting silicone rubber. When in too low temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization.

Shelf life of Electronic Potting Compound Silicone Rubber:

1. Twelvemonths from date of shipment when stored at 24C in original unopened packages.
2. This kind of product is nondangerous product, it can be transported as general chemicals.
3. Products exceed the storage life should be confirmed normal before using.

Package of Electronic Potting Compound Silicone Rubber:

20Kg/pail (Part A10Kg + Part B10Kg)

Certification of Electronic Potting Compound Silicone Rubber:

ISO9001: HK05/01358
SGS:GZ0606100461/CHE
RoHS:BTRS091718751
Patent:ZL200520001597.8
