T60(5) Fabric color light box
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Brand | TILO |
|---|---|
| Configured light sources | D65,TL84,CWF,F,UV |
| Weight | 30Kg |
| Dimensions(mm) | 710*405*570 |
| applications | Photographic, Textile, Dyeing, Packaging, Printing |
Detail Description

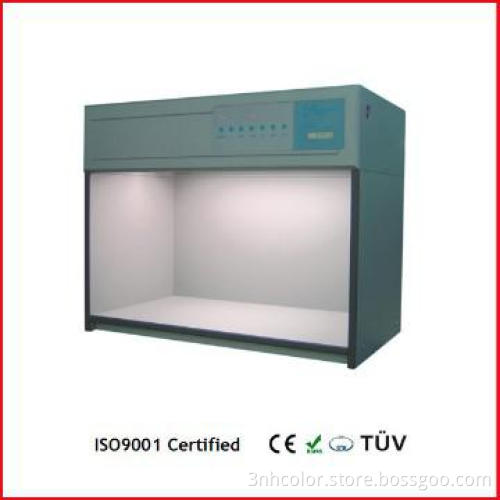

T60(5) Fabric color light box
Brand: TILO
Made in China
T60(5) color viewing booths can accommodate up to 5 light sources.The Color light box d65 / Colour assessment cabinet / color viewing booths can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
T60(5) color viewing booths Application:
Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a coloring match light box / color light box / Leather test light box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.
The Color matching booths / color light box / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
T60(5) color viewing booths Features:
Ø TILO Color assessment cabinet / Color Viewing Cabinet / Leather test light box render color more accurately. With 5 different light sources(D65, TL84, CWF, F, UV), which can detect the metamerism.
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
Ø The dimension can be made by customized.
Order Number |
Configured light sources |
Weight |
Dimensions(mm) |
T60(5) Color light box |
D65,TL84,CWF,UV,F/A |
32Kg |
710*405*570 |
About Light Sources:
Light Source |
color viewing booths application |
Color temperature(k) |
Power(W) |
D65 |
International standard Artificial Daylight |
6500 |
18 |
TL84 |
Applied to stores in Europe, Japan and China |
4000 |
18 |
CWF |
(Cool White Fluorescent)American Standard |
4150 |
18 |
F/A |
\"Sun-setting Light Yellow\" incandescent light source(imitation of sunset) |
2700 |
40 |
UV |
Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments |
Wavelength:365nm |
20 |
U30 |
Warm White Fluorescent, American Standard |
3000 |
18 |
