3d 1300*2500mm cnc wood router m25
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| control system | NcStudio control system |
|---|---|
| Z transmission | auto anti-gap & double nut ball screw |
| name | cnc wood router m25 |
| working size | 1300*2500mm |
| spindle power | 3KW |
| Total Power | 3.0KW |
| Type | Woodworking Machine |
| Style | Other |
| Power Voltage | 380V |
| Cnc | Yes |
| Use | Other |
| Weight | 1800KG |
Detail Description

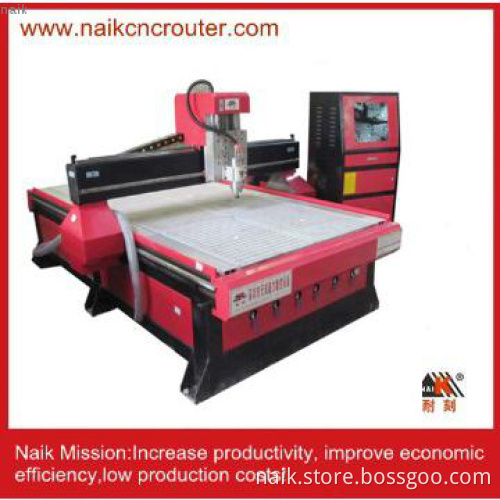

3d 1300*2500mm cnc wood router m25
| Model: | TC-1325A-Z cnc router |
| Guideway: | XYZ-axis use liner guideway |
| Driving mode : | XY-axis use rack and Z-axis use Linear Square screw |
| XY-axis working area : | 1300*2500mm |
| Table Size | 1380*2900mm |
| Z-axis working area: | 180 mm |
| Feeding height: | 200 mm |
| Spindle Speed: | 0-24000mm/min |
| Processing speed : | 20000mm/min |
| Mechanical precision: | ±0.15mm/300mm |
| Compatible Software: | Type 3 software , Artcut software , Artcam software |
| Spindle Power consumption: | 3.0KW with Water Colling Motor(Optional) |
| Power source: | AC220V/380V 50HZ |
| Driver type: | Shenzhen Leisai 86 stepper motor |
| Fixturing method | 5.5KW Vacuum table |
| Spindle: | 3.0KW variable speed,water-cooled motor |
| Blade diameter: | 3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
| Control system: | NCSTUDIO or DSP(USB interface) |
| Command: | G code , u00, mmg, plt, HPGL |
| Running circumstance temperature: | 0-45degree |
| Relative humidity: | 30%-75% |
1.One year equipment warranty and maintenance for lifetime
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
We are Professional CNC Router Manufacturer and with the development of our factory , we are sincerely seeking for Global Agent & Distributor
HK Naik CNC EQUIPMENT GROUP CO.,LIMITED
Attn:Daisy Liew
Tel:+86-755-29026698
Email:daisy@naikcncrouter.com
Mob:+86-13612805703
Add: NO54,Junxin Road, Guanlan Town, Baoan District,Shenzhen,China
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | NO |
| Delivery Details | 7-10 days after the order confirmed |
| FOB Port | Shenzhen |
| Loading Info | Opp bag with plywood box |
| Packing Info | Opp bag with plywood box |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
