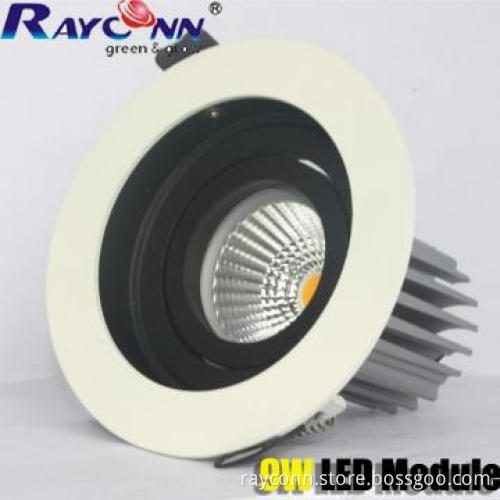

9W COB led module, bridgelux COB led spot (LY)

1, Delivering a halogen-like accent beam.
2, Huge energy savings up to 80%
3, Extremely low maintenance cost.
4, 30,000 hours lamp life
5, Retrofit replacement for 35~50W halogen.
6, Return on investment less than 1 year.
7, CE and RoHS certified.
8, Very homogenous light distribution.
9, Non-dimmable.

Application:

1, Retrofit replacement for 35~50W halogen spot.
2, Ideal illumination and decoration for home, hotel, bars and etc…
3, Display and exhibition cases, stores, cabinets.

Technical Parameters:

Light source: CITIZEN
Input Voltage: AC 220~240V
Power consumption: 9.2W
Rated current: 200mA
CCT: 2700K/3000K/4000K/5000K
Color of housing Silver
Rated life: 35,000 hours
Beam angle: 16°, 28°,40°
Operating temperature: -20°C~40°C
Storage temperature: -30°C~60°C
Color rendering index: 82
Certificate: CE/RoHS
Dimmability: Non-Dimmable
Cut hole Diameter
Package:
inner box :83x55x140mm
outer carton:430x290x300mm,50pcs/Carton

Order information

Quality Control:
100% of the led light will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.

Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

Order information

MOQ: 10pcs

Trade term: EXW  Shenzhen

Delivery time: 3-5 working days for sample order, 7-10 working days for mass order

Warranty

Three years since the date of purchase

Warranty term

1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products

2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, Rayconn will provide paid maintaince within warranty period.

Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or Paypal , or Western Union for small amount .
2. Lead time: normally in 5~10 days after deposit received
3. Sample policy: Samples are always available for each model. Samples can be ready in 3~7 days once payment received.
4. Shipping port: Shenzhen , China
5. Discounts: We offer discount for big quantity.

Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-trained and profession sales & after- sale services

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
