1500mm 5ft T5 LED tube with external driver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
CRI | >80 |
---|---|
Power Efficiency | >0.87 |
PF | >0.93 |
THD | <20% |
SMD | Epistar |
Life | 50,000hr |
Package | Yes |
Light Source Chip | Epistar |
Power | 24W |
Lamp Base | G5 |
Tube Diameter | T5 |
Color Tones | Natural White |
Voltage | 90-260V |
Illuminant | SMD |
Length | 150cm |
Detail Description
1. Description for T5 LED tube:
ERVAN T5 led tube.The unique design creates a perfectly visual appearance. The rotating end cap
makes it easy to focus the lighting precisely. L05G long lifetime and low lumen depreciation reducing
the maintenance costs due to L05G slim aluminum form, optical and driver integrated.
2. Display for T5 LED tube:
3. Feature for T5 LED tube:
Patented 180Deg rotating end cap design for the best lighting result
Aluminum PCB better heat dissipation than FR4
Just replace starter with Ervan LED fuse for retrofit
Single end power anti electric shock ensures safety
Maximum efficacy and minimum glare
High-tech optical design
Isolating driver inside
VDE/TUV/UL certification
Accessory: Fuse
4. Details for T5 LED tube:
5.Specification for T5 LED tube:
1.) Electrical Specifications:
T5-EX |
11W |
600MM |
3528/108PCS |
1155lm±10% |
T5-EX |
17W |
900MM |
3528/168PCS |
1785lm±10% |
T5-EX |
20W |
1200MM |
3528/216PCS |
2100lm±10% |
T5-EX |
24W |
1500MM |
3528/247PCS |
2520lm±10% |
T5-EX |
30W |
1800MM |
3528/288PCS |
3150lm±10% |
Operation Temperature: |
-20°C to 40°C |
Storage Temperature: |
-40° to 85° |
Voltage: |
100-277V |
Frequency: |
60HZ-50HZ |
Power Factor: |
>0.95 |
Power supply Efficiency: |
0.86 |
2. )Photometric Specifications:
LED Luminous Efficiency: |
Up to 115lm/w |
CRL: |
Ra: >80 |
CCT: |
Warm White 3000k |
daylight white 4000k | |
pure white 5500k | |
cold white 6500k |
3. )Mechanical Specifications:
Beam Angle: 120°
Light-emitting surface: 230°
Isolated power supply
Latest lockable rotating end cap
Europe safety wired
Frosted or clear cover available on request
Weight: 588MM/210g, 1198mm/368.2g, 1498mm/443.8g
Can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes
6.Application for T5 LED tube:
P4 car park in Denmark
ERVAN LED tube in CRABTREE Commercial Center

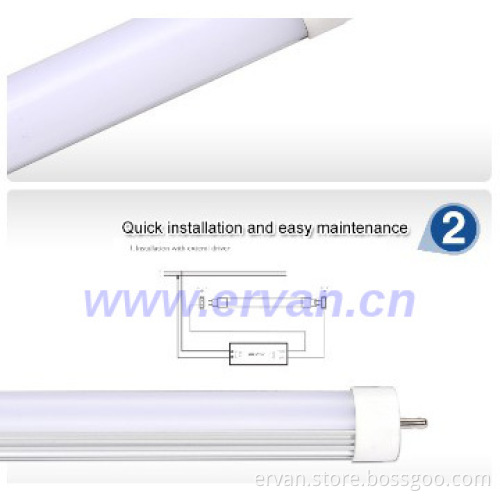

7.Installation for T5 LED tube:
8.Package for T5 LED tube:
9.Certification for T5 LED tube:
10.Factory:
11.Exhibition show:
12.FAQs for T5 LED tube:
?
LED lights (T5 LED tube, T8 LED tubes) do not use a filament where conductor is heated and light is created. Filament based lighting consumes more power than the light produced. LED lights produce very little amounts of heat and do not use filaments making them far more efficient in consumption and output.
LED tubes are geared for harsh environments. LED tubes function from -20℃ to 45℃. There is no delay or required \"warm up time\" for LED tubes to function.
yes, you can specify a future delivery date. Please contact us.
No they do not. Insects see entirely different spectrum of light and are attracted to ultraviolet light. A side note - flowers create \"nectar guides\", invisible to the human eye and ultraviolet light attracts insects to flowers for reproductive purposes. This is not to say that all bugs aren\'t attracted to LED lights, but most can\'t see the light that LEDs produce.
LED tubes are rated by manufacturers to operate under normal conditions for approximately 5 years or 50,000 hours of continuous use. As LEDs get older, they tend to dim and fade but aren\'t susceptible to blinking like incandescent or fluorescent.
