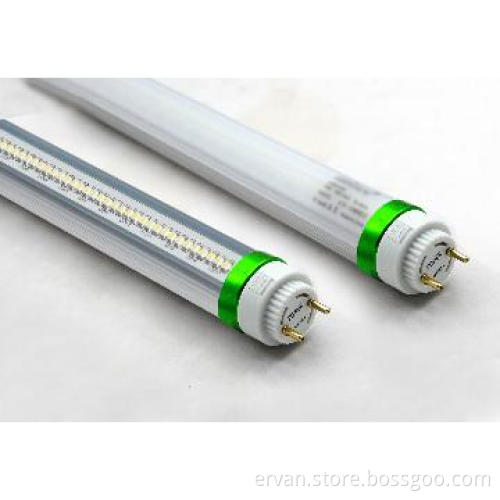

600mm 15W double side t8 led tube light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
Driver | Inside Isolating |
---|---|
Turncap | 0-180 Degree |
Power Factor | >=0.93 |
Color Temperature/CRI | 3000-6500K / >80 |
Beam Angle | 2*120° |
Life | 50,000hours |
Package | Yes |
Light Source Chip | Epistar |
Tube Diameter | T8 |
Lamp Base | G13 |
Length | 60cm |
Color Tones | Natural White |
Voltage | 90-260V |
Illuminant | SMD |
Power | 15w |
Detail Description
600mm 15W double side t8 led tube light
Feature:
Light Source: SMD3528 LED,
Material: AL + Strengthen PC cover
Lifespan: >50,000hrs
Up to 70% Energy Saving Consumption
High Brightness
Easy Installation
Extended Life
Ballast Bypassed/ Removed
High Shock/Vibration Resistance
Environmental-friendly and less hazardous without mercury
No Buzzing
No Radio Frequency Interference
No Flickering
Fast Return on Investment
Technical Specifications:
1. Electrical Specifications:
Model |
Power |
Dimension (mm) |
LED Quantity (pcs) |
Luminous (Frosted lens) |
Luminous (Clear Lens) |
L06G-P |
11W |
26*588(2FT) |
144 |
1100lm±10% |
1350lm±10% |
L06G-P |
15W |
26*588(2FT) |
144 |
1500lm±10% |
1650lm±10% |
L06G-P |
17W |
26*894(3FT) |
168 |
1700lm±10% |
1870lm±10% |
L06G-P |
20W |
26*1198(4FT) |
216 |
2000lm±10% |
2200lm±10% |
L06G-P |
24W |
26*1498(5FT) |
240 |
2400lm±10% |
2650lm±10% |
Operation Temperature: |
-20°C to 40°C |
Storage Temperature: |
-40° to 85° |
Voltage: |
110V-277V |
Frequency: |
50/60HZ |
Power Factor: |
>0.93 |
Power supply Efficiency: |
0.87 |
Q1:Why ERVAN?
A:1.OEM factory,exported all over the world from 2005,have research and development capability;
2.Good quality LED chip,good led,good driver supply isolated,good electronic packaging.and high lumen output but the lowest power consumption.5 year\'s guarantee;
3.Security, no dangerous of electric shock or leakage;
4.Reliable reputation, and 150,000~200,000 production to ensure the delivery time;
5.DLC/VDE/TUV/UL/CE/ROHS certification;
6.Cooperate with many big companies with strength, by they all consistent high praised;
7.Patented 180Deg rotating end cap design for the best lighting results;
8.Aluminum PCB better heat dissipation than FR4;
9.Same quality service,deal with your problem immediately.
Q2:How to aging your products?
A:We aging our led tube at least 8 hours before they leave factory.
Q3:What are your terms of delivery? (How many days do you usually produce the goods? Port of loading?)
Q4:Terms of payment?
Q5:Will it be possible to print our logo and TM on your goods?
Additional Information
Payment Terms | L/C, T/T |
---|---|
Minimum Order | 2pcs |
Lead Time / Delivery Time | 25 Day(s) |
Sample Available | YES |
Delivery Details | Samples:7-9 Days, Mass Production : 20-30 Days Air, Sea or Express Any way can reach you. |
FOB Port | Shenzhen |
Loading Info | Air, Sea or Express Any way can reach you. |
Packing Info | 0.6m: small box: 72*24*24cm, big box: 74*48*26cm0.9m:small box: 102*24*24cm,big box: 105*48*26cm1.2m:small box: 133*24*24cm,big box: 135*48*26cm1.5m:small box:163*24*24cm,big box:165*48*26cm |
Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
