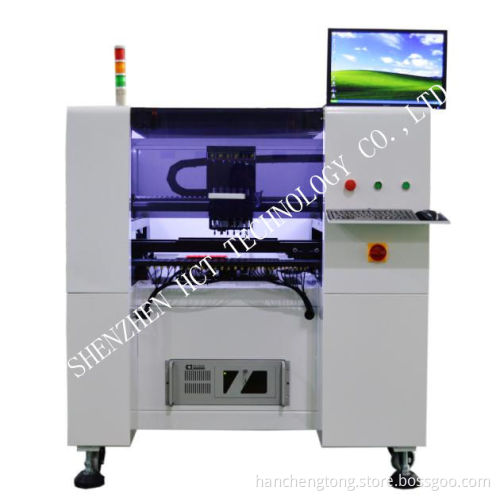

Excellent quality HCT-600-L Full Automatic SMT Placement Machine for PCB Electronics Manufacturing

We are instrumental in providing to our valuable customers excellent quality Automatic SMT Placement Machine which is available with following specification:

Model#: HCT-600-L
Outline Dimensions: L*W*H 1300*1380*1790mm
Total Weight: Approx 1000kg

PCB:
PCB Size Min: 50mm X50mm
Max:360mm X800mm
PCB Thickness: 0.5-3.0mm
PCB Convey Direction: From Left to right

Operation System:
Software: Windows XP
Display: LCD Monitor
Input Device: Mouse & Keyboard

Vision System:
No. of Camera: 7 Sets
Mark Point Recognition Gray scale & Multi - View Shape Recognition & Edge Detection
Positioning Way: MARK by Vision Alignment System

SMD Components: 0402 - IC<40mm (Max Height 12mm)
No. of Placement Head: 6 Nozzles
No. of Feeders: 30 Units (8mm Feeders)
Accuracy: ±0.05mm (chip & IC)
Speed: 25000CPH (maximum)

Power Supply: Single phase, AC 220V (±10%), 50Hz
Maximum Power: 2.0 KW
Compressed Air: 0.7MPA

Clients can avail this Automatic SMT Placement Machine at industry leading prices from us.

Competitive Advantages of the product
● Optimized pick / place routing design, ensures precision end speed
● Each mounting head has its own Z - direction servo motor, which is designed for vertical motion
● Configured with variety of vacuum nozzle(8MM-32MM)
● For different PCB , FPC, MCPCB, PSB, etc.;
● Suit for variety of SMD components: resistors, capacitors, IC, BGA, QFP, CFP, µBGA, etc.
● Using imported high precision ball screw, motor, solenoid valve, cable, etc., effectively improve the placement accuracy, stability.
