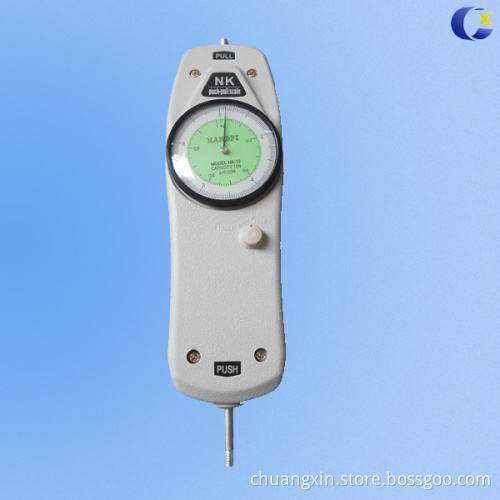

NK/NLB series anolog force gauge
Features & Functions
*Easy to be operated and can be installed with all kinds of test stands and clamps.
*Peak holding function and continuous.
*One year free maintenance.
*Compact and artistic packing, easy to transit and stock.
*Two kind of unit dual show at the same time,
*don't need unit conversion.
*NK Series: Newton and Kilogram dual unit;
*NLB Series: Newton and Pound dual unit;
*ALB: Pound and Kilogram dual unit.
*Needle indicates, easy to read, high accuracy.
Technical Specification
|
Part No. |
NK-10 |
NK-20 |
NK-30 |
NK-50 |
NK-100 |
NK-200 |
NK-300 |
NK-500 |
NLB-10 |
NLB-20 |
NLB-30 |
NLB-50 |
|||||||||
|
Capacity (N) |
10 |
20 |
30 |
50 |
100 |
200 |
300 |
500 |
10 |
20 |
30 |
50 |
|||||||||
|
Resolution(N) |
0.05 |
0.1 |
0.2 |
0.25 |
0.5 |
1.0 |
2.0 |
2.5 |
0.05 |
0.1 |
0.2 |
0.25 |
|||||||||
|
Travel |
10mm |
||||||||||||||||||||
|
Dimension |
260*66*36mm |
||||||||||||||||||||
|
Part No. |
NLB-100 |
NLB-200 |
NLB-300 |
NLB-500 |
ALB-2 |
ALB-4 |
ALB-10 |
ALB-20 |
ALB-40 |
ALB-100 |
|||||||||||
|
Capacity |
100N |
200N |
300N |
500N |
2.2lb |
4.5lb |
11lb |
22lb |
45lb |
110lb |
|||||||||||
|
Resolution |
0.5N |
1.0N |
2.0N |
2.5NB |
0.01lb |
0.02lb |
0.05lb |
0.1lb |
0.2lb |
0.5lb |
|||||||||||
|
Travel |
10mm |
||||||||||||||||||||
|
Dimension |
260*66*36mm |
||||||||||||||||||||
