UL507 Uninsulated Live Parts Probe

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Delivery Time:: 7 Days

Transportation:: Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000pcs/month
Supply Ability:	10000pcs/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Transportation:	Air

Product Description

1. Application:

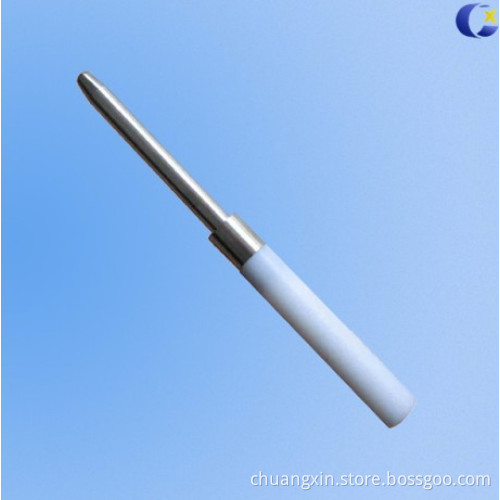

The UL test probe is used in UL 507 to test for hazards from moving parts.It has two tapers from the one inch ending at the tip. The tip has a 0.125 inch (33.175 mm) radius. The handle end has a threaded hole that accepts a force gauge (dynomomter).The probe is made of stainless steel.

2. Technical parameter:

For testing accessibility in accordance with many UL Standards.

The handle is Delrin and the tip is stainless steel.

Rigid Finger length	101.6mm (4 inch)
Rigid Finger diameter	φ12.7mm (1/2 inch)
Head radius	R4.8mm (3/16 inch)
Tail diameter	19.1mm, (3/4 inch)
Reference	UL1278 fig8.1 (PA130A), UL507 Fig 9.1 (PA135A)
