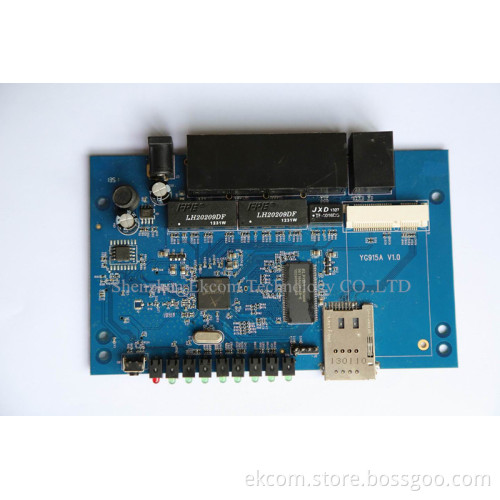

150M 3G 4G wireless router module

Specifications
configuration
MIPS 24 k 400 MHZ
software
· Openwrt
interface
10/100, 4 m adaptive RJ45 LAN port (Auto MDI/MDIX);
10/100, 1 m adaptive RJ45 WAN port (Auto MDI/MDIX);
1, since the spring type SIM card interface;
, a power supply interface;
1, SMA 3 g antenna interface;
1, Wifi antenna interface
button
Reset, Reset button
The power supply
DC 5 v and 24 v, 1 a
size
170 * 90 mm

Function of the cable
DHCP Settings
DHCP server;
DHCP client;
client list;
static address allocation;
System tools
a built-in watchdog.
traffic statistics;
system security log;
remote Web management;
Configuration files, import and export;
TFTP software upgrade;
TTL serial port upgrade;
Telnet, management;

Using the environment
Working temperature: 0 ℃ to 40 ℃;
Storage temperature: - 40 ℃ to 70 ℃;
Working humidity: 10% to 90% RH non condensation;
Store humidity: 5% to 90% RH non condensation;
